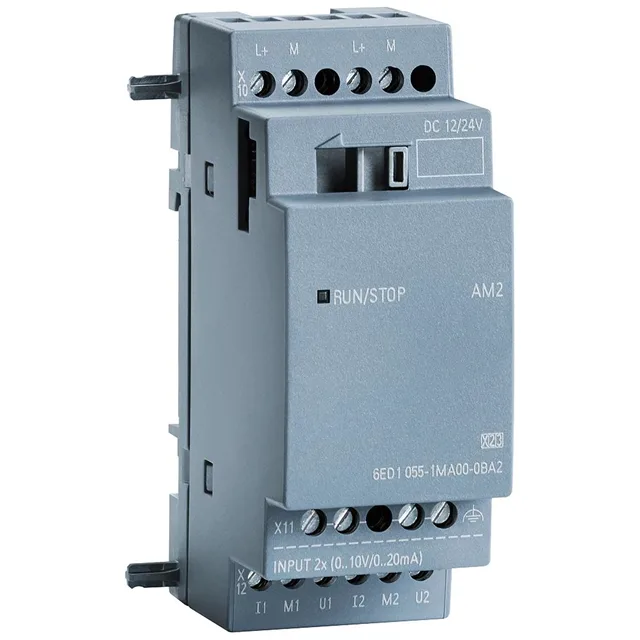

Siemens SIPLUS LOGO! AM2 analog expansion module (6AG1055-1MA00-7BA2), 2 analog inputs, 0-10 V or 0/4-20 mA, -40 to +70 °C, conformal coating, active.
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m |
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Parameter | Value |
|---|---|
| Width | 35.5 mm |
| Height | 90 mm |
| Depth | 58 mm |
The 6AG1055-1MA00-7BA2 is the SIPLUS version of the standard LOGO! AM2 (6ED1055-1MA00-0BA2), factory-coated for damp, oily, or corrosive environments. It adds two analog inputs — 0-10 V or 0/4-20 mA — to a LOGO! 8 base module, drawing 30 mA from the 12/24 V DC supply.
Operating -40 to +70 °C, cold restart to -25 °C with condensation permitted. Type 1 fouling protection; resistant to coolants, lubricants, oil, and diesel droplets.
Operating range is -40 to +70 °C, with cold restart permitted down to -25 °C (including condensation, but no commissioning under condensation).
No. 6AG1222-1BH32-2XB0 is a 16-channel digital output module; this is a 2-channel analog input module. They serve different functions and have different footprints (90x35.5x58 mm vs. 100x45x75 mm). Not a wiring or mechanical swap.
