Siemens 6AG1055-1NB10-7BA2

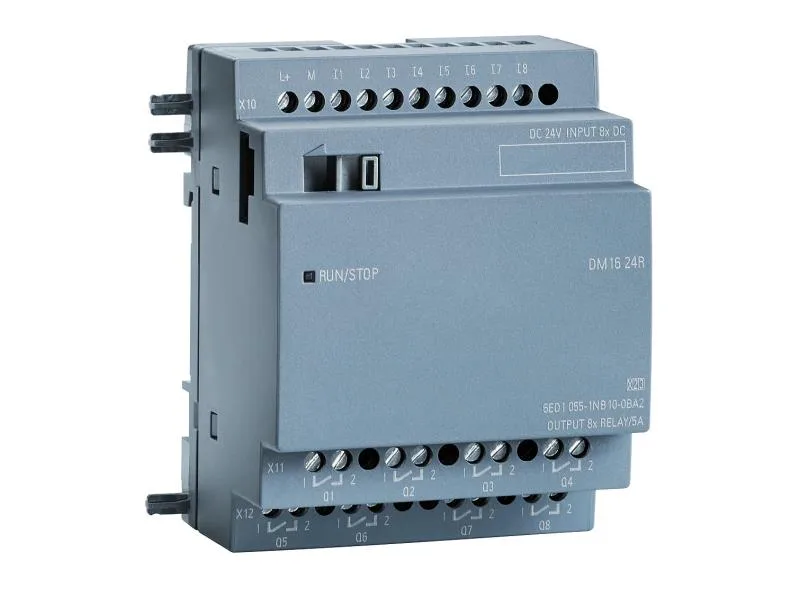

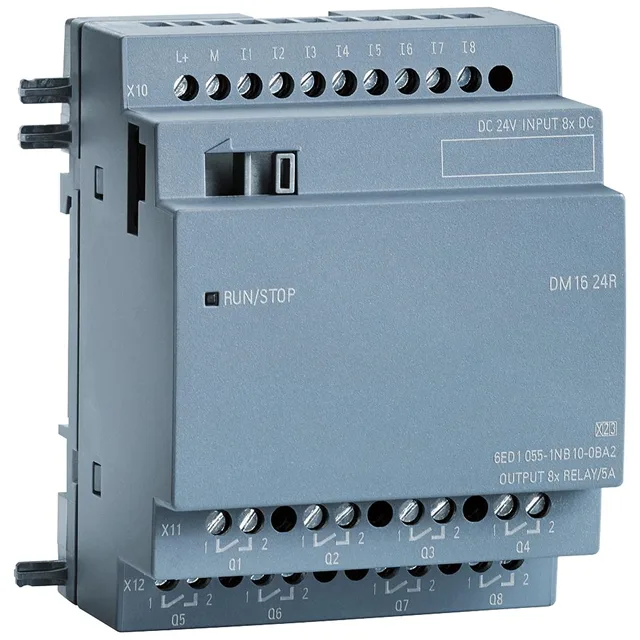

Siemens 6AG1055-1NB10-7BA2 SIPLUS LOGO! DM16 24R, -40…+70°C

MPN 6AG1055-1NB10-7BA2
Active

Siemens SIPLUS LOGO! DM16 24R expansion module, 6AG1055-1NB10-7BA2, 8 DI / 8 DQ relay, conformal coating, -40…+70°C, IP20, 24V DC.

$246.38 – $580.62 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6AG1055-1NB10-7BA2 specifications
ParameterValue
IP ratingIP20
Temp operating max10 °C
Temp operating min-20 °C
Depth58 mm
Width71.5 mm
Height90 mm

Product details

The Siemens 6AG1055-1NB10-7BA2 is a SIPLUS variant of the LOGO! DM16 24R expansion module, based on the standard 6ED1055-1NB10-0BA2 but with conformal coating and a widened temperature range of -40 to +70 °C. It provides 8 digital inputs (24 V DC, sink/source) and 8 relay outputs rated 5 A resistive / 3 A inductive per channel. The module mates directly to a LOGO! 8 base unit over the expansion bus, drawing its power from the 24 V DC backplane. No additional fieldbus configuration needed; the I/O mapping follows the LOGO! slot order.

SIPLUS variant operates -40 to +70 °C, cold-start at -25 °C with condensation permitted. Conformal coating resists coolants, diesel oil, and corrosive gases.

Production status is current — no last-time-buy notice or phase-out indicator. For a maintenance spares buyer, this means the 6AG1055-1NB10-7BA2 remains specifiable for new builds and can be sourced as a one-in-the-cabinet critical spare without risk of imminent obsolescence. The conformal-coated variant is typically stocked against direct order; lead time is quoted per RFQ.

IP20 enclosure. Supply voltage 20.4 to 28.8 V DC. Inputs: >12 V DC threshold, 3.5 mA typ. per channel. Relay outputs NO/NC selectable. Max switching 10 Hz. Depth 58 mm.

MPN
6AG1055-1NB10-7BA2
