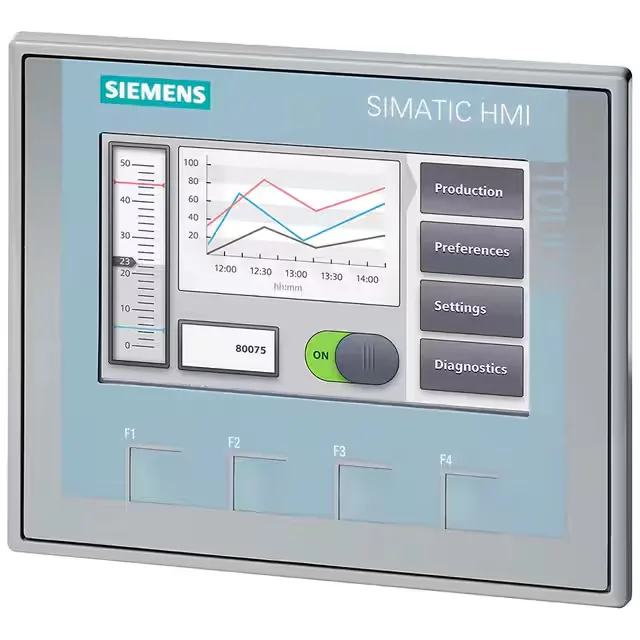

Siemens 6AG1123-2DB03-2AX0 Industrial Automation Module, PROFINET, MODBUS TCP/IP, Ethernet, -20 to 60 °C, IP20 rear.
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 125 mA |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m |
| Temperature, min. | -20 °C |
| Temperature, max. | 60 °C |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
The Siemens 6AG1123-2DB03-2AX0 is an industrial automation module with PROFINET and Ethernet onboard, plus MODBUS TCP/IP for integration with Modicon or third-party SCADA. It supports DCP for IP assignment without a separate tool, and covers a -20 to 60 °C operating range for unconditioned enclosures. Rear protection is IP20, requiring a clean, dry environment behind the panel gland plate.
No, CAN is not supported on this module.
No, CSV is not supported.
It operates from -20 °C to 60 °C.
No, only standard PROFINET RT is available; IRT is not supported.
