Siemens 6AG1124-0QC13-2AX0 — HMI Operator Interfaces

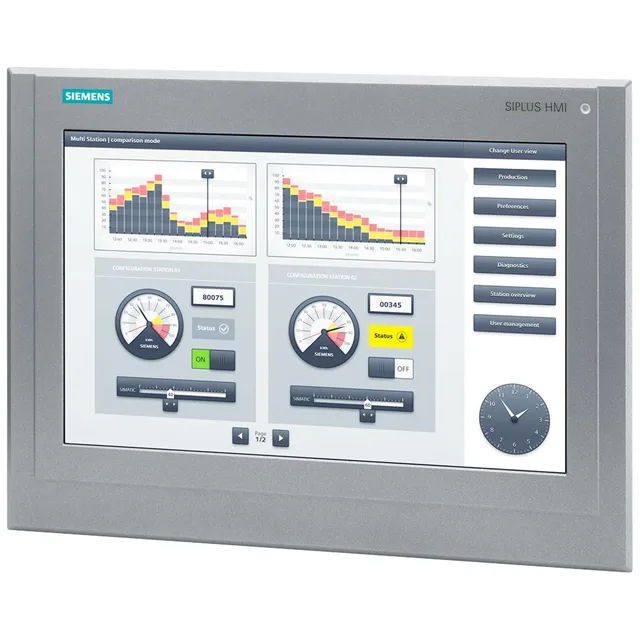

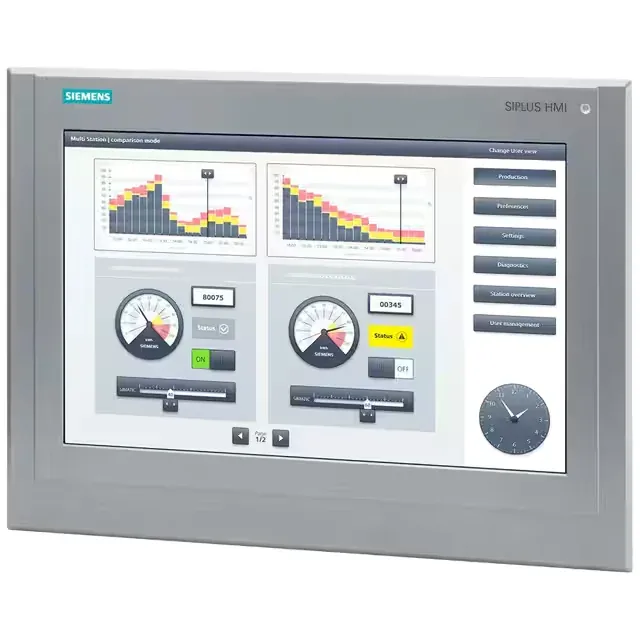

Siemens 6AG1124-0QC13-2AX0 12" Comfort Panel, -30 to 70 °C

MPN6AG1124-0QC13-2AX0

Active

Siemens 6AG1124-0QC13-2AX0 12" Comfort Panel HMI, -30 to 70 °C, PROFINET IRT, MPI, Modbus TCP/IP, USB, printer.

$7,364.73 – $16,139.96Ref. price · indicative, final on quote

Add to RFQ

Siemens 6AG1124-0QC13-2AX0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6AG1124-0QC13-2AX0 — Display
Parameter	Value
Screen diagonal (size)	15.4 in
Display design	TFT, bonded, daylight-readable
Touch screen	Yes; Analog-resistive
Number of display colors	16 777 216
Backlight MTBF (at 25 °C)	50 000 h

6AG1124-0QC13-2AX0 — Communication & I/O
Parameter	Value
Alphanumeric keyboard	Yes; Onscreen keyboard

6AG1124-0QC13-2AX0 — Electrical
Parameter	Value
Current consumption (rated)	1.3 A
Rated value (DC)	24 V
Type of supply voltage	DC
Permissible range, upper limit (DC)	28.8 V
Permissible range, lower limit (DC)	19.2 V

6AG1124-0QC13-2AX0 — Mechanical
Parameter	Value
Mounting cutout height	291 mm
Mounting cutout width	396 mm
Portrait mounting possible	Yes
Overall depth	77 mm
Front panel height	310 mm
Front panel width	415 mm
Weight (without packaging)	4 kg

6AG1124-0QC13-2AX0 — Environmental
Parameter	Value
Ingress protection, front	IP66
Ingress protection, rear	IP20
Max.	70 °C
Min.	-30 °C

Product details

Integrator's field note

The 6AG1124-0QC13-2AX0 is a 12" Comfort Panel HMI from Siemens, functionally equivalent to a standard 12" Comfort Panel but with an extended temperature range of -30 to 70 °C. It supports PROFINET IRT, MPI, Modbus TCP/IP, USB host, and printer connectivity out of the box. Note that CAN bus is not supported on this unit.

Protocol and connectivity overview

This panel includes CSS, CSV, DCP, IRT, MPI, MRP, RAM, RDB, DHCP, HTML, HTTP, LLDP, SNMP, Flash, LOGO!, WinAC, Alarms, Arrays, MODBUS, S7-200, S7-1200, S7-1500, TCP/IP, Buttons, Sliders, Speaker, and Printer support. It does not include CAN, XML, HTTPS, Java VM, or a buzzer.
