Siemens 6AG1124-0UC02-4AX1 — HMI Operator Interfaces

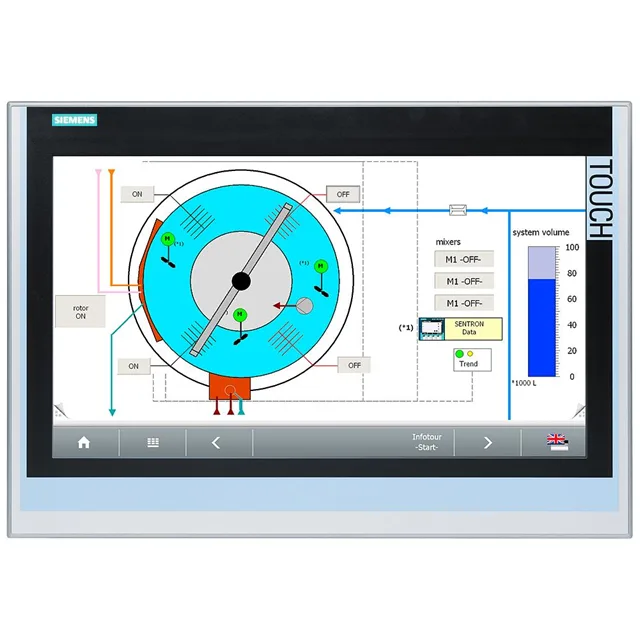

Siemens 6AG1124-0UC02-4AX1 SIMATIC HMI, 2 ports, IP20

MPN6AG1124-0UC02-4AX1
NRND

Siemens 6AG1124-0UC02-4AX1 — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$5,396.23 – $11,828.18Ref. price · indicative, final on quote
Siemens 6AG1124-0UC02-4AX1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6AG1124-0UC02-4AX1 — Display
ParameterValue
Screen diagonal (size)18.5 in
Display designTFT
Touch screenYes; Analog-resistive
Number of display colors16 777 216
Backlight MTBF (at 25 °C)50 000 h
6AG1124-0UC02-4AX1 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes; Onscreen keyboard
6AG1124-0UC02-4AX1 — Electrical
ParameterValue
Current consumption (rated)1.7 A
Rated value (DC)24 V
Type of supply voltageDC
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
6AG1124-0UC02-4AX1 — Mechanical
ParameterValue
Mounting cutout height319 mm
Mounting cutout width465 mm
Portrait mounting possibleYes
Overall depth75 mm
Front panel height337 mm
Front panel width483 mm
Weight (without packaging)5.6 kg
6AG1124-0UC02-4AX1 — Environmental
ParameterValue
Ingress protection, frontIP65
Ingress protection, rearIP20
Max.60 °C
Min.-20 °C

Product details

Overview

The 6AG1124-0UC02-4AX1 is a Siemens SIMATIC HMI panel with a 16.7M-color display, two communication ports, and an IP20 enclosure. It supports CAN (no), CSS (yes), RDB (yes), TXT (yes), and XML (yes) protocols, and measures 409.8 x 230.4 x 75.0 mm at 8620 g.

This HMI panel runs the SIMATIC software stack and supports CSV, DCP, IRT, MPI, MRP, USB, DHCP, HTML, HTTP, HTTPS, LLDP, SNMP, flash, WinAC, AB DF1, alarms, arrays, and Modbus. It does not include a Java VM, a power rating, an info LED, or a buzzer. The 2 ports handle protocol traffic for fieldbus and Ethernet-based networks.

The panel occupies 409.8 mm width, 230.4 mm height, and 75.0 mm depth, weighing 8620 g. The IP20 rating permits in-cabinet mounting; verify cut-out dimensions and gland plate clearance before panel layout.

Within the Siemens SIMATIC HMI family, the 6AG1124-0UC02-4AX1 targets applications requiring a mid-size display with broad protocol support (CAN, CSS, RDB, TXT, XML) and no Java VM. It is specified by machine builders and integrators who need a single panel for Ethernet and serial fieldbus connectivity.

MPN
6AG1124-0UC02-4AX1
