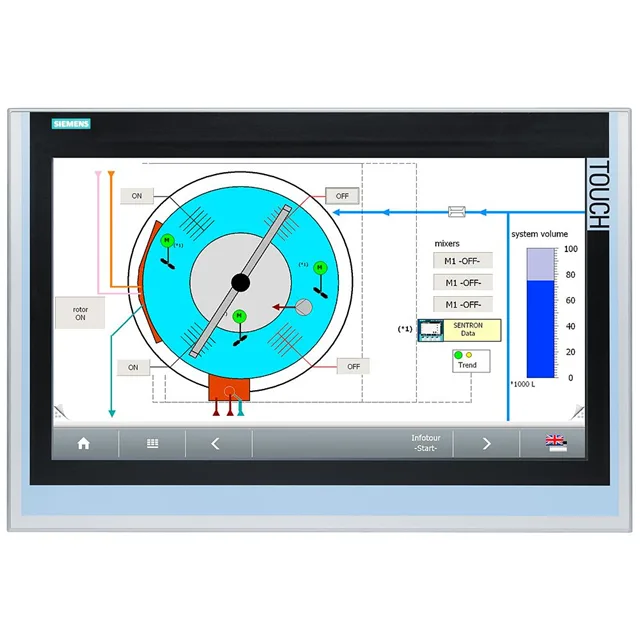

Siemens 6AG1124-0XC02-4AX1 — HMI Operator Interfaces

Siemens 6AG1124-0XC02-4AX1 SIMATIC Unclassified, IP20, 2 Ports

MPN6AG1124-0XC02-4AX1
NRND

Siemens SIMATIC Unclassified module, order code 6AG1124-0XC02-4AX1, IP20, 2 ports, 16.7M colors, USB, Modbus, S7-200, AB DF1, alarms, arrays, flash, HTTPS, WinAC, DHCP, HTTP, LLDP, SNMP, 475.2 x 267.3 x 75.0 mm, 9.28 kg.

$11,983.65 – $13,901.03Ref. price · indicative, final on quote
Siemens 6AG1124-0XC02-4AX1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6AG1124-0XC02-4AX1 — Display
ParameterValue
Screen diagonal (size)21.5 in
Display designTFT
Touch screenYes; Analog-resistive
Number of display colors16 777 216
Backlight MTBF (at 25 °C)30 000 h
6AG1124-0XC02-4AX1 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes; Onscreen keyboard
6AG1124-0XC02-4AX1 — Electrical
ParameterValue
Current consumption (rated)1.7 A
Rated value (DC)24 V
Type of supply voltageDC
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
6AG1124-0XC02-4AX1 — Mechanical
ParameterValue
Mounting cutout height362 mm
Mounting cutout width542 mm
Portrait mounting possibleYes
Overall depth75 mm
Front panel height380 mm
Front panel width560 mm
Weight (without packaging)6.7 kg
6AG1124-0XC02-4AX1 — Environmental
ParameterValue
Ingress protection, frontIP65
Ingress protection, rearIP20
Max.60 °C
Min.-20 °C

Product details

Overview

The 6AG1124-0XC02-4AX1 is a Siemens SIMATIC-series Unclassified module, order code 6AG1124-0XC02-4AX1, rated IP20 for in-cabinet use. Dimensions are 475.2 mm wide, 267.3 mm high, and 75.0 mm deep; weight is 9280.0 g.

Applications

As a Siemens SIMATIC Unclassified module, it serves in industrial automation and control systems where a versatile interface and data-processing unit is required.

Communication protocols include Modbus, AB DF1, and MPI, with additional support for IRT, MRP, and PROFINET via DCP and LLDP. Onboard USB, flash memory, and support for HTTPS, HTTP, DHCP, and SNMP allow direct web-based configuration and file transfer without an external gateway. The unit supports alarms and arrays, and includes a hardcopy function and ActiveX integration for HMI-style data logging and reporting. No Java VM or power consumption figure is listed; the module does not include an info LED or buzzer.

MPN
6AG1124-0XC02-4AX1
