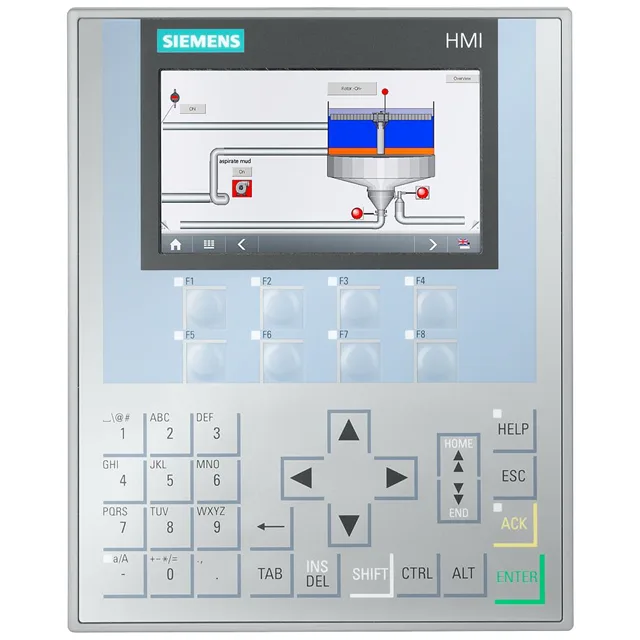

Siemens 6AG1124-1DC01-4AX0 HMI Panel
MPN6AG1124-1DC01-4AX0
Active
SIPLUS HMI KP400 Comfort based on 6AV2124-1DC01-0AX0 with conformal coating, 0...+50 °C,
$990.60 – $2,484.96Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Display
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 4.3 in |
| Display design | TFT |
| Touch screen | No; without |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 80 000 h |
Communication & I/O
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; similar to mobile phone |
Electrical
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.13 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
Mechanical
| Parameter | Value |
|---|---|
| Mounting cutout height | 171 mm |
| Mounting cutout width | 135 mm |
| Portrait mounting possible | No |
| Overall depth | 49 mm |
| Front panel height | 188 mm |
| Front panel width | 152 mm |
| Weight (without packaging) | 0.8 kg |
Environmental
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
MPN
6AG1124-1DC01-4AX0
