Protocol support and fieldbus fit
The 6AG1124-2DC01-4AX0: This HMI panel supports MODBUS, TCP/IP, MPI, and DCP for controller communication, but does not support CAN or IRT — so it fits a standard PROFINET or PROFIBUS line but not a motion-control network requiring isochronous real-time. CSS, CSV, and LLDP are supported, meaning the panel can participate in network topology discovery and configuration backup via the controller's web interface.
Operating range and enclosure fit

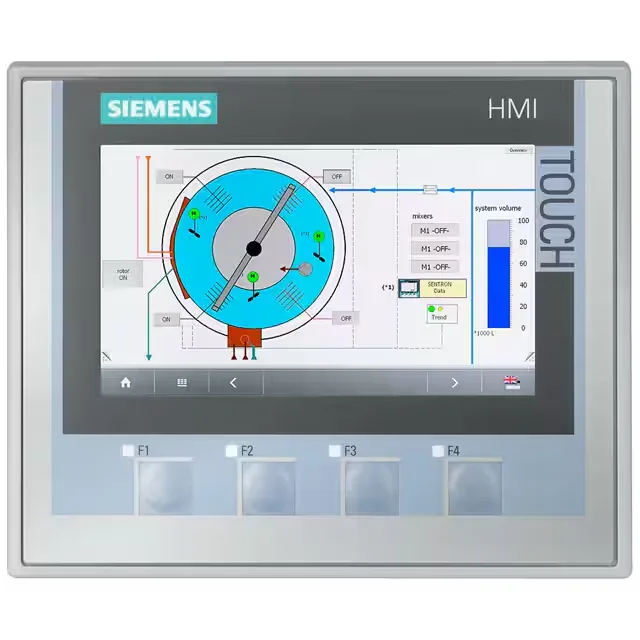

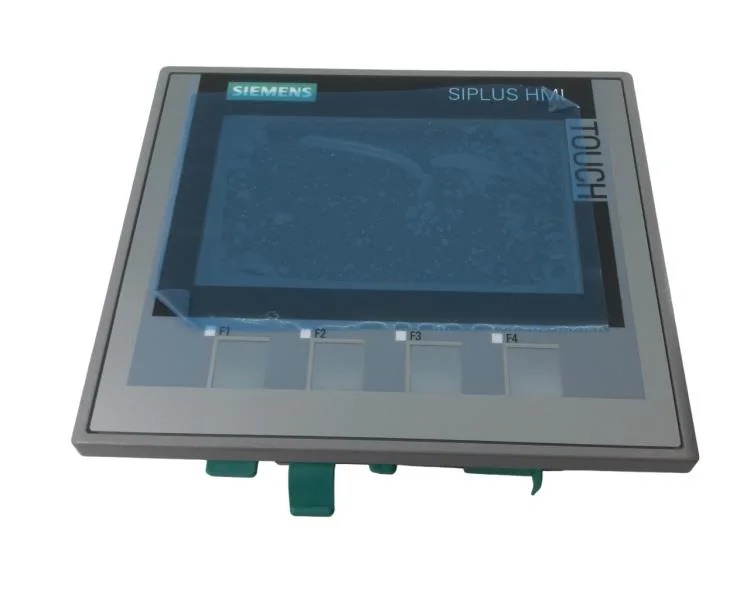

Rated for -20 °C to 60 °C ambient, so it handles unheated cabinets in cold climates or warm enclosures near machinery — verify the panel's internal temperature rise stays within that ceiling. Plastic housing with 4 function keys (F1...Fx), buttons, sliders, and a buzzer — the front-panel cutout and mounting depth match the standard Siemens HMI footprint for this series.
Data interfaces and programming

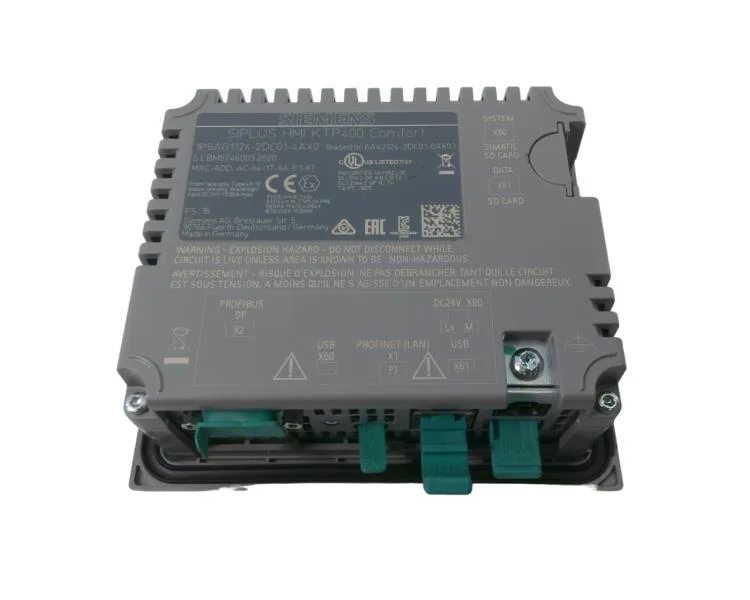

USB and Ethernet (TCP/IP, HTTP, DHCP) are onboard for project download and web-based diagnostics — no need for a dedicated programming adapter on the first power-up. Supports S7-1200, S7-1500, S7-200, and LOGO! controllers directly, plus WinAC software PLC — this covers the majority of Siemens control platforms without a gateway.
