Extended-Temperature Digital Output Slice

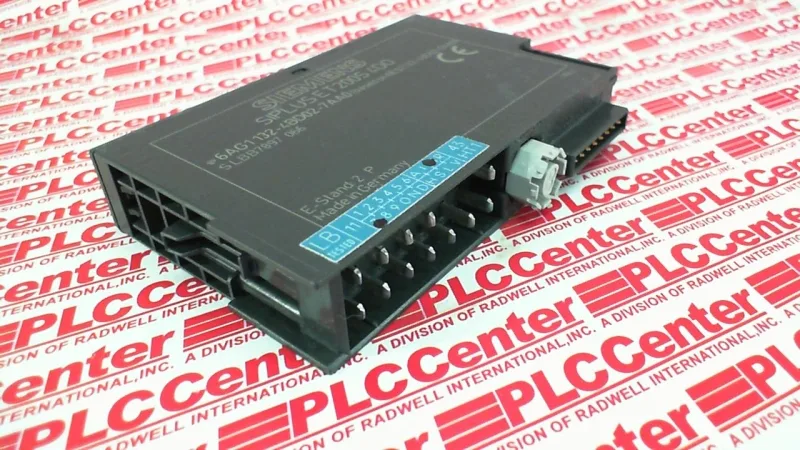

The Siemens 6AG1132-4BD02-7AA0 is a SIPLUS variant of the S7-1200 digital output module, built to operate from -25 °C to 70 °C. That temperature span is the headline reason to reach for this order code instead of the standard 0-to-60 °C version — it keeps the line running in non-conditioned cabinets, roof-top enclosures, or cold-chain warehouse floors. The module holds 4 transistor outputs, each rated at 0.5 A at 24 V DC sourced from the backplane bus. One byte of address space (4 bits used) maps into the process image.
