Siemens 6AG1137-6AA01-7BA0 — PLCs (Programmable Logic Controllers)

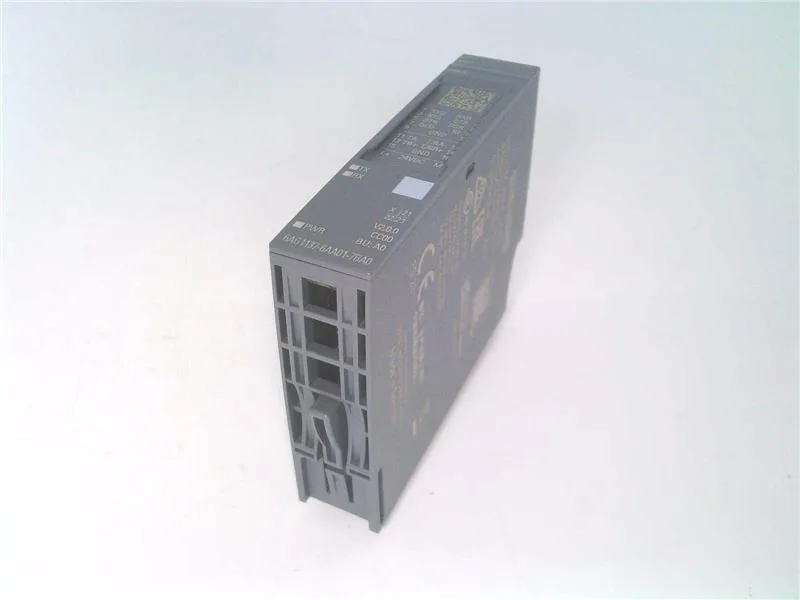

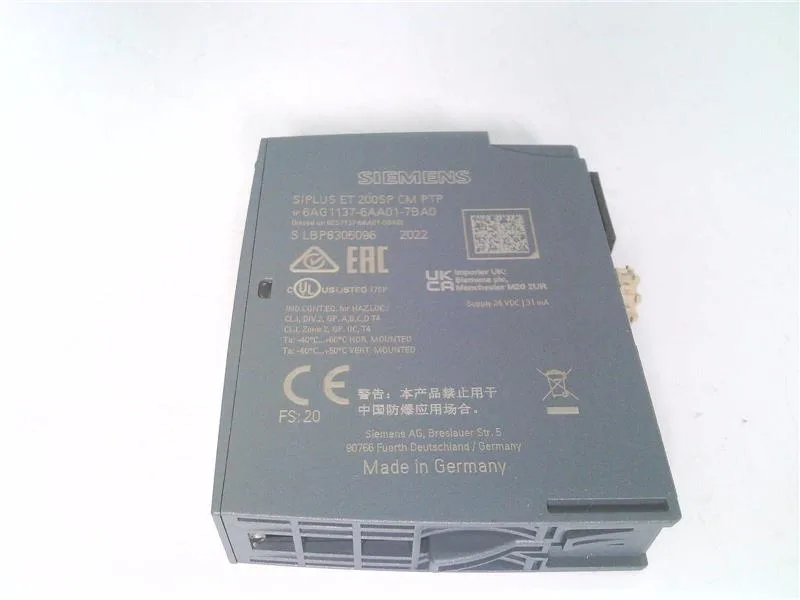

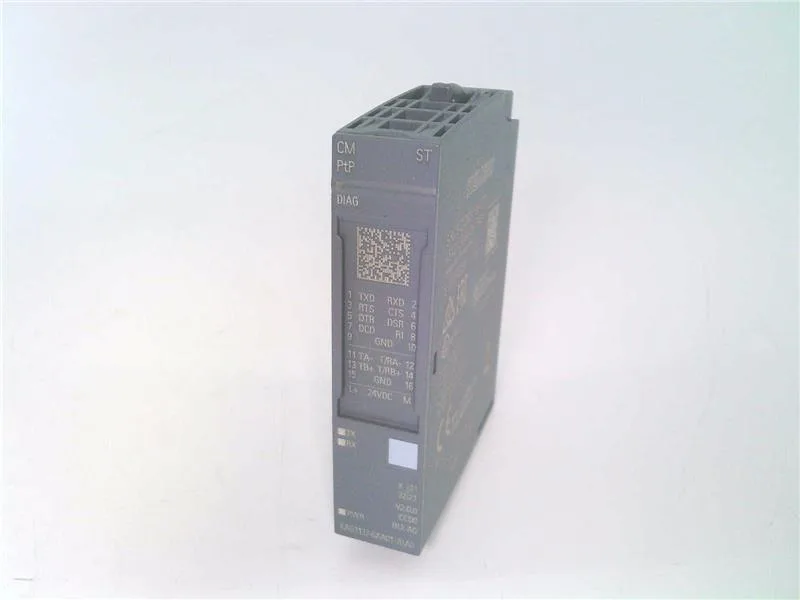

Siemens 6AG1137-6AA01-7BA0 CM PtP, RS232/422/485, 115.2 kbit

Name: 6AG1137-6AA01-7BA0
Brand: Siemens
SKU: 6AG1137-6AA01-7BA0
Availability: LimitedAvailability
Author: Mobile-Repair Mona

MPN6AG1137-6AA01-7BA0

Active

Siemens 6AG1137-6AA01-7BA0 CM PtP serial module for ET 200SP, RS232/422/485, 115.2 kbit/s, push-in terminal, 15 x 73 x 58 mm, active production.

$358.14Ref. price · indicative, final on quote

Add to RFQ

Siemens 6AG1137-6AA01-7BA0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6AG1137-6AA01-7BA0 — I/O
Parameter	Value
Input data area	8 byte; performance mode: 32 byte
Output data area	0 byte; performance mode: 32 byte

6AG1137-6AA01-7BA0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Current consumption (rated)	31 mA
Permissible range, lower limit (DC)	19.2 V
Permissible range, upper limit (DC)	28.8 V
Power loss (typ.)	0.7 W

6AG1137-6AA01-7BA0 — Environmental
Parameter	Value
Installation altitude, max.	5 000 m
Operating temperature, min. (horizontal mounting)	-40 °C; = Tmin (incl. condensation/frost)
Operating temperature, max. (horizontal mounting)	70 °C; = Tmax
Ambient temperature vs. altitude/pressure derating	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

6AG1137-6AA01-7BA0 — Mechanical
Parameter	Value
Width	15 mm
Height	73 mm
Depth	58 mm
Weight (approx.)	30 g

Product details

The Siemens 6AG1137-6AA01-7BA0 is a CM PtP (point-to-point) serial communications module for the ET 200SP distributed I/O system. It handles RS232, RS422, and RS485 on a single 15 mm wide slice that mounts on a BU type A0 base unit. Rated for 24 VDC with reverse polarity protection and draws 35 mA max. Transmission rate tops at 115.2 kbit/s, configurable parity, stop bits, bits per character. Telegram buffer holds 4 kbyte; performance mode: receive 24 byte, send 30 byte max. Cable length up to 1 200 m on RS485.
