6AG1151-3BA23-7AB0 - Siemens
MPN6AG1151-3BA23-7AB0

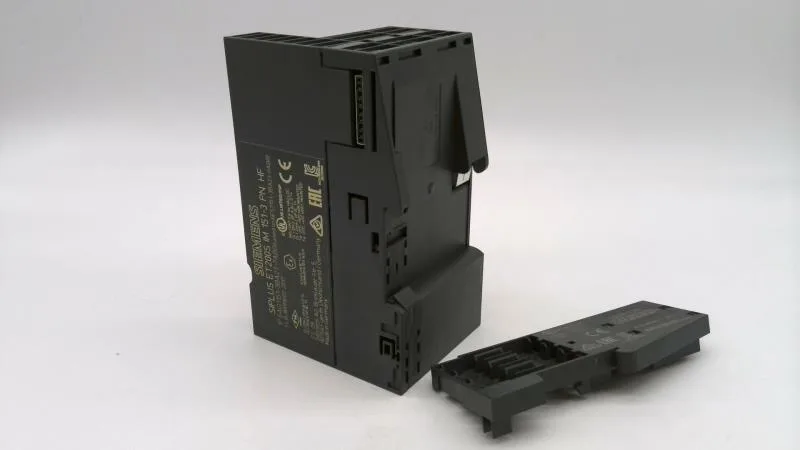

SIPLUS ET 200S IM 151-3 PN HF based on 6ES7151-3BA23-0AB0 with conformal coating, -25…+70 °C, interface module transfer rate 100 Mbps max. 63 I/O modules up to 2 m width can be connected; 2x bus connections via RJ45 incl. termination module
$674.37Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical
| Parameter | Value |
|---|---|
| Power loss (typ.) | 3.3 W |
Environmental
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
Mechanical
| Parameter | Value |
|---|---|
| Width | 60 mm |
| Height | 119.5 mm |
| Depth | 75 mm; with mounting rail |
Other specifications
| Parameter | Value |
|---|---|
| Supports protocol for PROFINET IO | Yes |
| Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
MPN
6AG1151-3BA23-7AB0
