Siemens 6AG1193-4CD20-2AA0

Siemens 6AG1193-4CD20-2AA0 SIPLUS ET 200S, -40…70°C

MPN 6AG1193-4CD20-2AA0

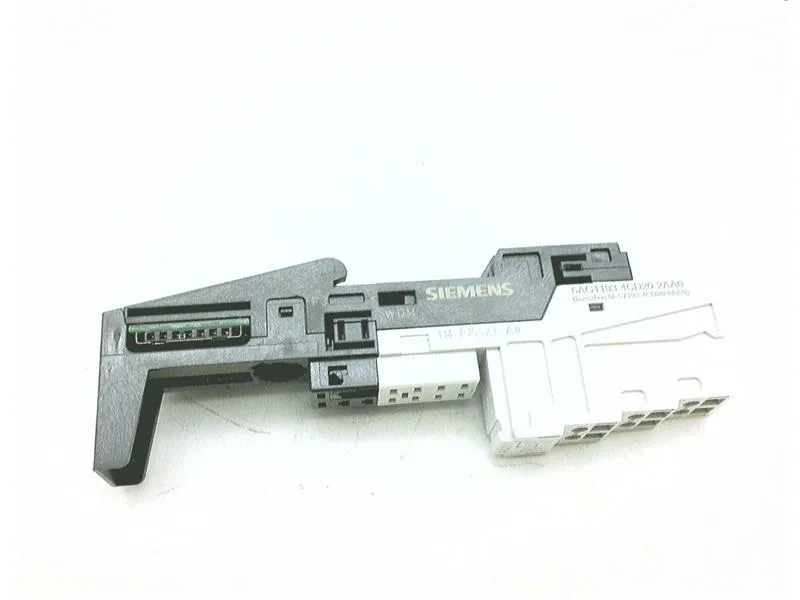

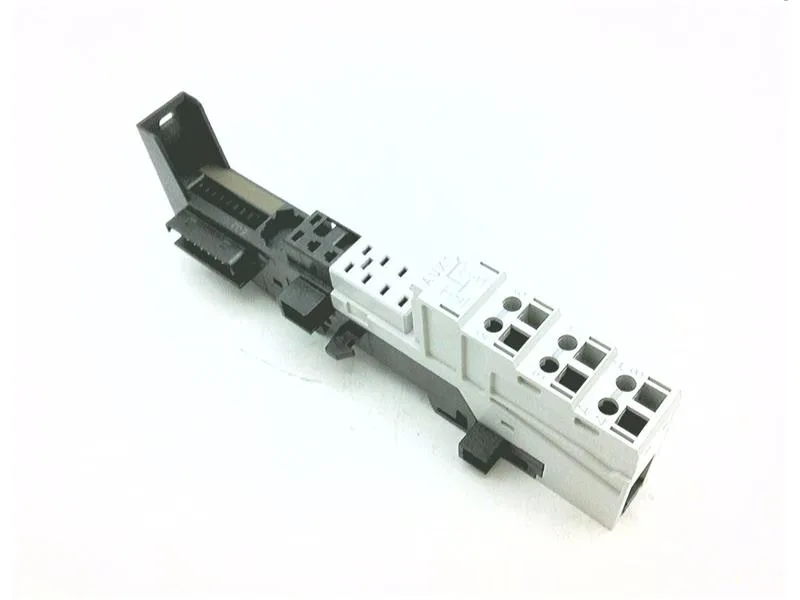

Siemens SIPLUS ET 200S TM-P15S23-A0, order code 6AG1193-4CD20-2AA0, power module with conformal coating, -40…+70 °C, 15 mm width, screw terminals 2x3 with AUX1 interrupted.

$17.78 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6AG1193-4CD20-2AA0 specifications
ParameterValue
Temp operating max10 °C
Temp operating min-20 °C
Depth43 mm
Width15 mm
Height132 mm

Product details

The 6AG1193-4CD20-2AA0 is a SIPLUS ET 200S power module based on the standard 6ES7193-4CD20-0AA0 but with conformal coating and an extended ambient temperature range of -40 to +70°C. It fits in the ET 200S system as a 15 mm wide module with screw terminals providing 2x3 connections and an interrupted AUX1 bus. This variant is built for environments where humidity, condensation, or aggressive gases are present — the conformal coating protects the PCB while the wide temperature spec covers unheated outdoor cabinets or freezer applications.

Mounts on the ET 200S rail with the same 132 x 15 x 43 mm footprint as its standard sibling. The interrupted AUX1 terminal access is important for modules requiring a separate supply or isolation.

Environmental resilience

Qualified for Level GX (corrosive gases), Level LC3 (salt spray), and Level LB3 (oil). Also carries CE marking. At altitudes up to 2 000 m, full temperature range applies; from 2 000 m to 3 500 m, derate Tmax by 10 K; from 3 500 m to 5 000 m, derate by 20 K.

MPN
6AG1193-4CD20-2AA0
