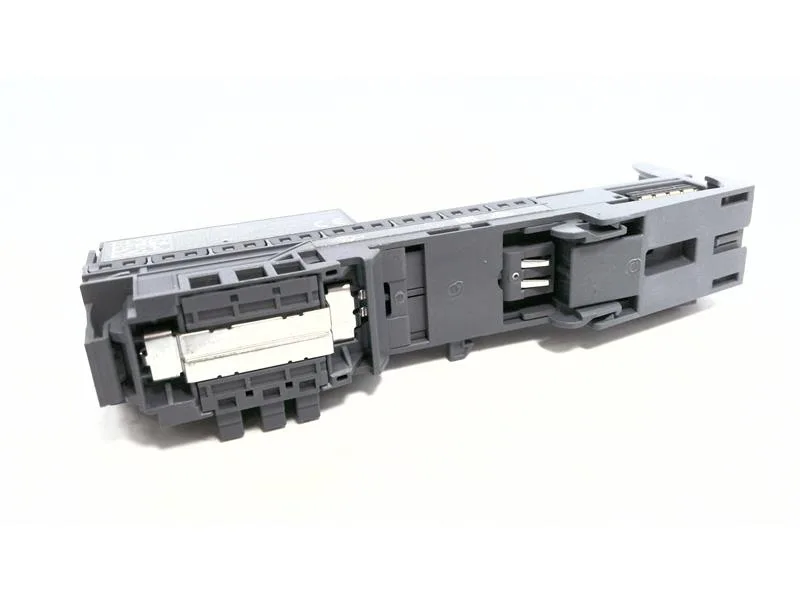

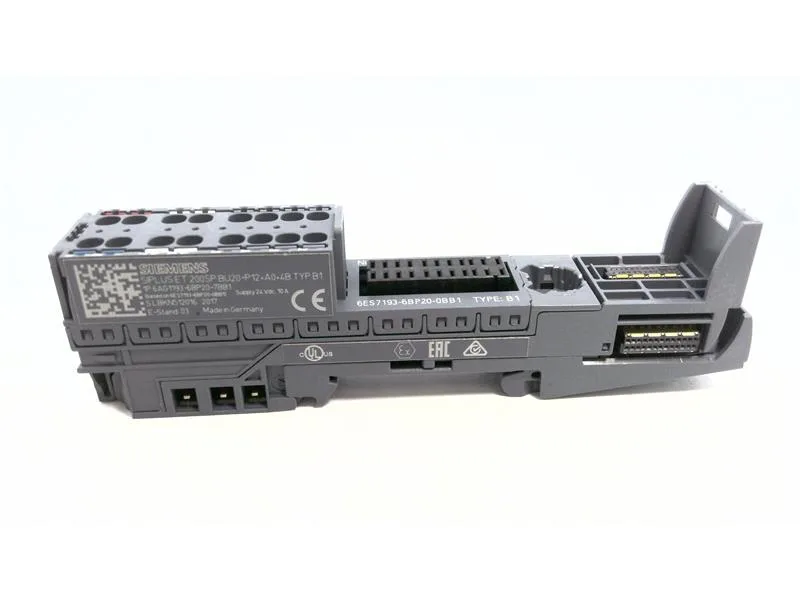

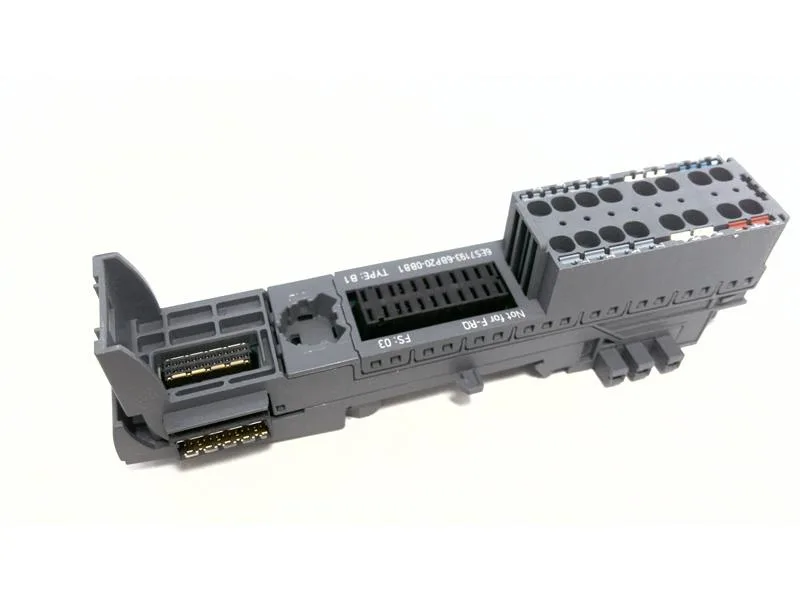

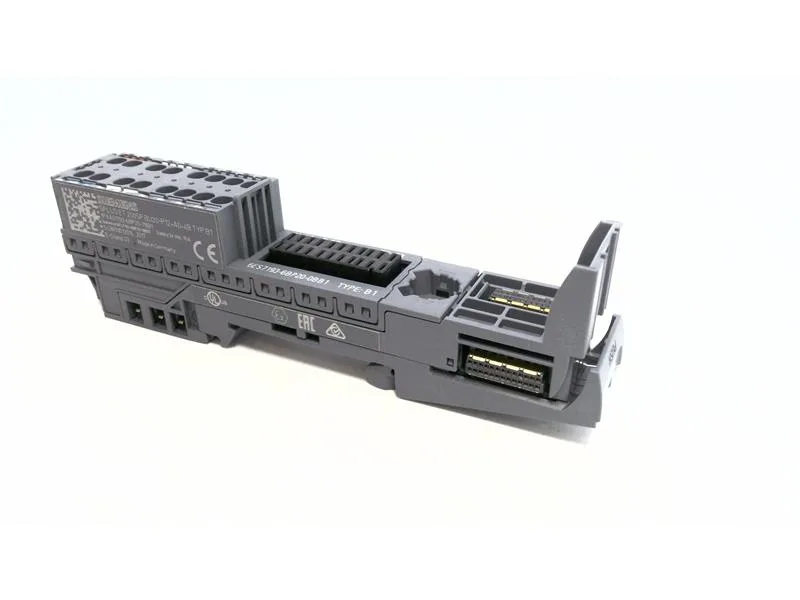

Siemens 6AG1193-6BP20-7BB1 ET 200SP Base Unit
MPN6AG1193-6BP20-7BB1
Active
SIPLUS ET 200SP BU20-P12+A0+4B TYP B1 based on 6ES7193-6BP20-0BB1 with conformal coating, -40…+70 °C, BU type B1, push-in terminals, without AUX terminals, bridged to the left, WxH: 20 mm x 117 mm
$40.64Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
Environmental
| Parameter | Value |
|---|---|
| Installation altitude, max. | 3 000 m |
| Operating temperature, min. (horizontal mounting) | -40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C |
| Operating temperature, max. (horizontal mounting) | 70 °C; = Tmax |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... Tmax -5K) at 795 hPa ... 701 hPa (+2 000 m ... +3 000 m) |
Mechanical
| Parameter | Value |
|---|---|
| Width | 20 mm |
| Height | 117 mm |
| Depth | 35 mm |
| Weight (approx.) | 48 g |
MPN
6AG1193-6BP20-7BB1
