Siemens 6AG1215-1HG40-5XB0 — PLCs (Programmable Logic Controllers)

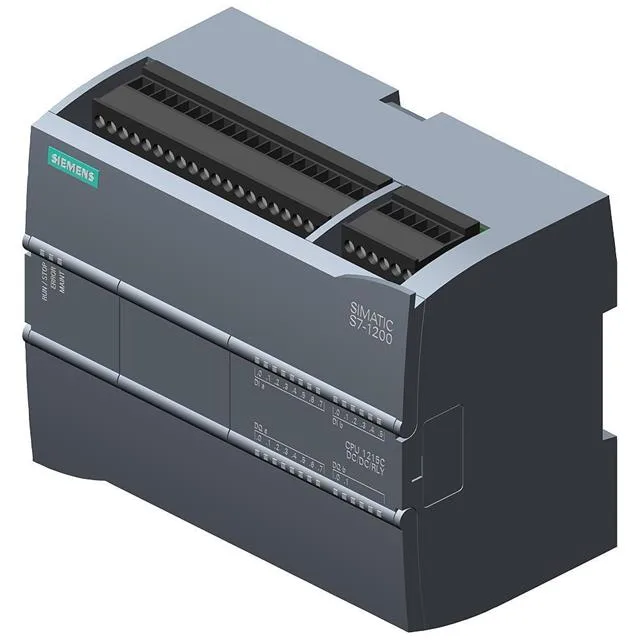

Siemens 6AG1215-1HG40-5XB0 SIPLUS S7-1200, -40-70°C

MPN6AG1215-1HG40-5XB0
Active

Siemens SIPLUS S7-1200 CPU, 6AG1215-1HG40-5XB0, -40 to 70°C, PROFINET, FBD/LAD/SCL.

$1,734.13 – $1,796.06Ref. price · indicative, final on quote
Siemens 6AG1215-1HG40-5XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6AG1215-1HG40-5XB0 — I/O
ParameterValue
Digital inputs14; Integrated
Digital outputs10; Relays
6AG1215-1HG40-5XB0 — Processor & Memory
ParameterValue
Execution time, bit operations (typ.)0.085 µs; / instruction
Execution time, word operations (typ.)1.7 µs; / instruction
Execution time, floating-point arithmetic (typ.)2.5 µs; / instruction
Size, max.8 kbyte; Size of bit memory address area
6AG1215-1HG40-5XB0 — Programming
ParameterValue
Programming language: FBDYes
Programming language: LADYes
Programming language: SCLYes
6AG1215-1HG40-5XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Current consumption (rated)500 mA; CPU only
Permissible range, lower limit (DC)5 V
Permissible range, upper limit (DC)250 V
Power loss (typ.)12 W
6AG1215-1HG40-5XB0 — Environmental
ParameterValue
Installation altitude, max.2 000 m
Temperature, min.-40 °C
Temperature, max.70 °C
Ambient temperature vs. altitude/pressure deratingTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m); above 2 000 m max. 132 V AC
6AG1215-1HG40-5XB0 — Mechanical
ParameterValue
Width130 mm
Height100 mm
Depth75 mm
Weight (approx.)585 g
6AG1215-1HG40-5XB0 — Communication
ParameterValue
Interface typePROFINET

Product details

It programs in FBD, LAD, and SCL, and carries PROFINET on board with additional protocol support via add‑on modules.

Integration notes

PROFINET interface supports shared device and autocrossing. For PROFIBUS, fit the CM 1243‑5 module. MODBUS TCP and UDP are handled natively without an extra gateway. Backup time for the real‑time clock and retain data is 480 h typical, covering weekend power outages. Integrated 4 Mbyte load memory is sufficient for mid‑size applications; the bit memory address area is 8 kbyte. Analog inputs handle 0–10 V and 0–20 mA. The built‑in PID controller can be used for simple process loops without an external module.

Frequently asked questions

Does the 6AG1215-1HG40-5XB0 support FBD programming?

Yes, the CPU supports function block diagram (FBD) as a programming language, along with ladder (LAD) and structured text (SCL).

What is the operating temperature range of this CPU?

Rated from -40°C to 70°C, making it suitable for outdoor enclosures, cold storage, or hot factory environments without derating at the upper end.

What communication interfaces are available without extra modules?

The CPU has a built-in PROFINET interface for Ethernet-based protocols including TCP/IP, MODBUS, and UDP. PROFIBUS requires the CM 1243-5 module. AS-Interface is also supported via a master module.

How long does the CPU retain its data during a power loss?

The backup time is typically 480 hours for the real-time clock and retained memory variables, using the internal energy buffer.
