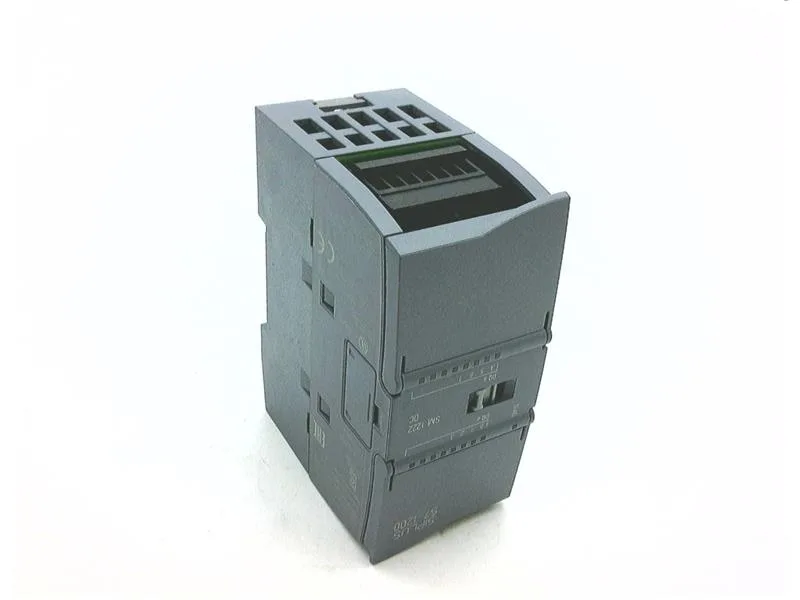

SIPLUS S7-1200 SM 1222 8DQ based on 6ES7222-1BF32-0XB0 with conformal coating, -20…+60 °C, digital output 8 DQ, 24 V DC, transistor 0.5 A
$121.92 – $315.20Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 0.5 A |
| Output current at signal "1" (rated) | 0.5 A |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Output voltage at signal "1" (min.) | 20 V DC |
| Residual current at signal "0", max. | 10 µA |
| Current consumption from backplane bus (5 V DC), max. | 120 mA |
| Power dissipation (typ.) | 1.5 W |
| Inductive shutdown voltage clamp | typ. (L+) -48 V |
| Isolation between channels and backplane bus | 500 V AC |
| Isolation, channels in groups of | 1 |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | No; to be provided externally |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
Performance
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 50 µs |
| Output switching delay 1 to 0, max. | 200 µs |
| Switching frequency, inductive load, max. | 0.5 A |
| Switching frequency, lamp load, max. | 5 W |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 150 m |
| Cable length, shielded, max. | 500 m |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight (approx.) | 180 g |
