The Siemens 6AG1222-1HH32-2XB0 is a SIPLUS variant of the S7-1200 digital output module, providing 16 relay outputs rated at 2 A each for resistive or inductive loads. It switches AC loads from 5 V to 250 V AC and DC loads from 5 V to 30 V DC. The extended temperature range of -40 to 70 °C, along with conformal coating typical of SIPLUS hardware, suits panels in cold storage, outdoor cabinet climates, or heat-soaked enclosures. Maintainter tip: coil draw is 11 mA from the 24 V load supply and 135 mA from the backplane 5 V bus—budget both when sizing the CPU power supply.

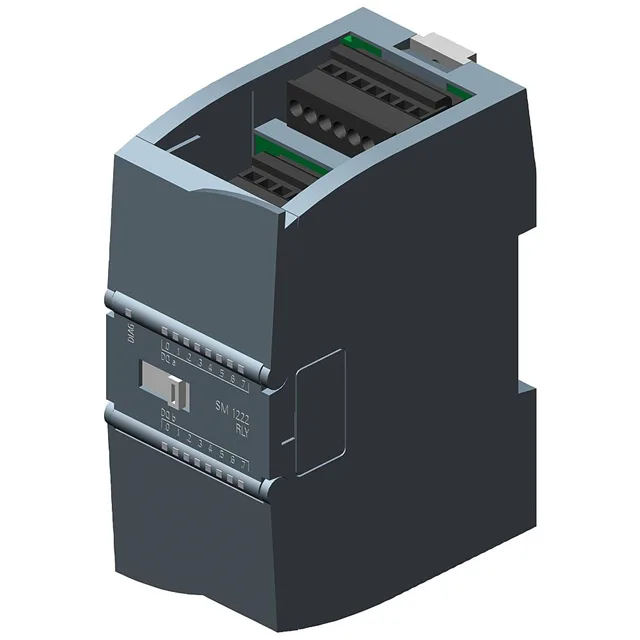

Siemens 6AG1222-1HH32-2XB0, -40 to 70°C, 16 Relay Output
MPN6AG1222-1HH32-2XB0
Active
Siemens SIPLUS 6AG1222-1HH32-2XB0, S7-1200 relay output module, 16 channels, 2 A, -40 to 70 °C, 100 × 45 × 75 mm.
$222.25 – $613.80Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 16 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 5 V DC to 30 V DC |
| Output current, resistive load, max. | 2 A |
| Output current at signal "1" (rated) | 2 A |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Current consumption from backplane bus (5 V DC), max. | 135 mA |
| Power dissipation (typ.) | 8.5 W |
| Isolation between channels | Relays |
| Isolation between channels and backplane bus | 1 500 V AC for 1 minute |
| Isolation, channels in groups of | 4 |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | No; to be provided externally |
| Diagnostics function | Yes |
| Diagnostic alarm | Yes |
Performance
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 10 ms |
| Output switching delay 1 to 0, max. | 10 ms |
| Switching frequency, inductive load, max. | 2 A |
| Switching frequency, lamp load, max. | 30 W with DC, 200 W with AC |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 150 m |
| Cable length, shielded, max. | 500 m |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight (approx.) | 260 g |
Product details
Frequently asked questions
What is the maximum operating temperature?
The maximum ambient temperature is 70 °C.
What is the minimum operating temperature?
The minimum ambient temperature is -40 °C, with a cold restart minimum of -25 °C.
