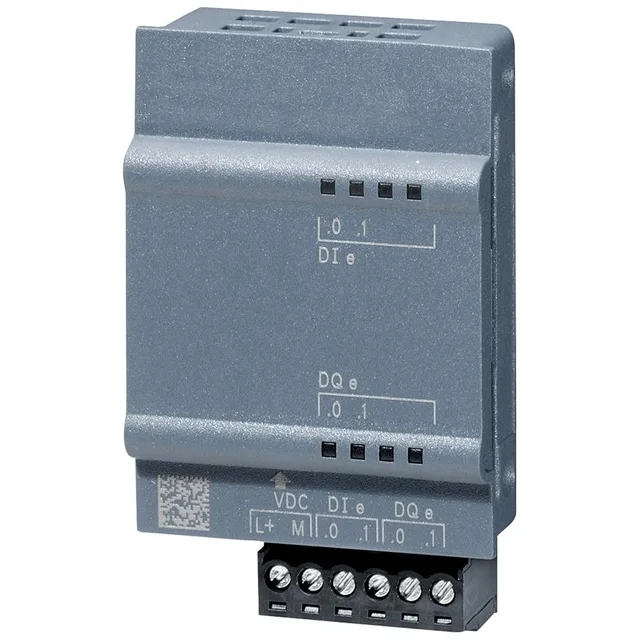

Siemens SIPLUS S7-1200 digital I/O module, 6AG1223-0BD30-4XB0, 2 inputs 2 outputs, 24 V DC, -40 to 70 °C, 40 g.
| Parameter | Value |
|---|---|
| Digital inputs | 2; Current-sinking |
| Digital outputs | 2; MOSFET, solid-state (current-sinking/current-sourcing) |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| For signal "1" | +15 to +30 V |
| For signal "0" | 0 to 5 V |
| Current for signal "1" (typ.) | 7 mA |
| Max. | 70 °C |
| Power loss (typ.) | 1 W |
| Short-circuit protection | No |
| Max. cable length, shielded | 50 m |
| Parameter | Value |
|---|---|
| Parameterizable | Yes |
| Diagnostics function | Yes |
| Parameter | Value |
|---|---|
| Min. | -40 °C |
| Parameter | Value |
|---|---|
| Height | 62 mm |
| Width | 38 mm |
| Depth | 21 mm |
| Weight (approx.) | 40 g |
Packaged in the SIPLUS variant, it carries 2 current-sinking digital inputs (24 V DC) and 2 solid-state digital outputs (0.5 A each). Switching is fast—2 µs on and 10 µs off—and the module supports parameterisable inputs, diagnostics, and alarms. Power loss is a lean 1 W typical, and the module draws 4 mA per channel from the backplane bus at 5 V DC.
