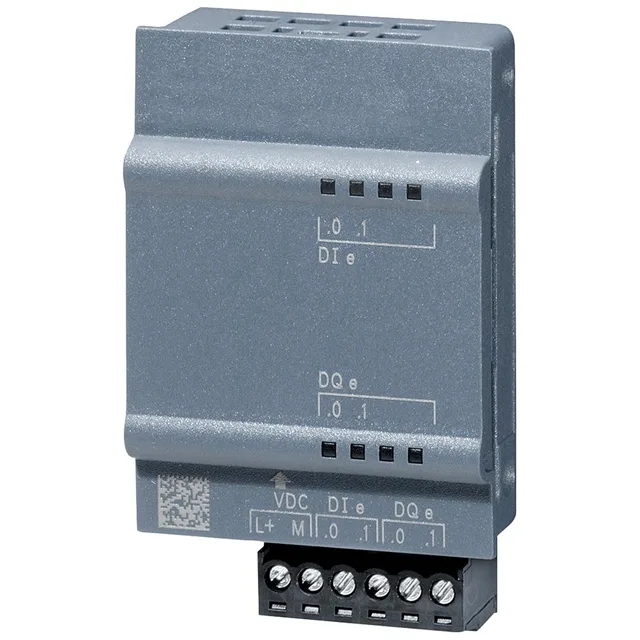

The 6AG1223-0BD30-5XB0 is a SIPLUS S7-1200 SB 1223 digital I/O module — the conformal-coated version of the standard 6ES7223-0BD30-0XB0. It packs two 24 V DC inputs and two 24 V DC outputs into a compact 38 x 62 x 21 mm footprint that draws 1 W from the backplane. The full rated temperature range runs from -40°C to 70°C, with startup down to -25°C. Resistant to coolants, lubricants, diesel, and oil droplets, with Type 1 fouling protection and conformal coating meeting Class A. Withstands aggressive environments per levels GX, LC3, and LB3.
6AG1223-0BD30-5XB0 SIPLUS S7-1200 SB 1223, -40…70°C, conform
MPN6AG1223-0BD30-5XB0
Active
Siemens SIPLUS S7-1200 SB 1223, 6AG1223-0BD30-5XB0, 2 DI 24 V DC / 2 DQ 24 V DC, conformal coating, -40…60 °C operating, -40…70 °C max, 1 W typ. power loss.
$226.72Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 2 |
| Digital outputs | 2 |
Electrical
| Parameter | Value |
|---|---|
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Current for signal "1" (typ.) | 7 mA |
| Max. | 70 °C |
| Power loss (typ.) | 1 W |
| Short-circuit protection | No |
| Max. cable length, shielded | 50 m |
Environmental
| Parameter | Value |
|---|---|
| Min. | -40 °C |
Mechanical
| Parameter | Value |
|---|---|
| Height | 62 mm |
| Width | 38 mm |
| Depth | 21 mm |
Product details
Frequently asked questions
What temperature range does this module support?
It operates from -40°C to 70°C ambient, with startup capability down to -25°C.
What protections does the conformal coating offer?
The conformal coating meets IPC-CC-830A Class A, and the module is resistant to coolants, lubricants, diesel, and oil droplets. It is also designed for levels GX, LC3, and LB3 per ANSI/ISA-71.04, covering aggressive gases, salt spray, and oil.
