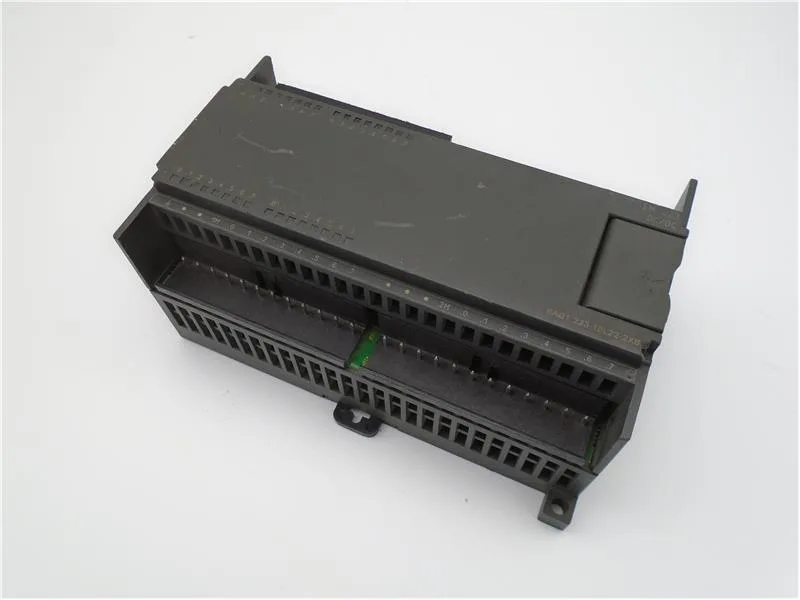

6AG1223-1BF22-2XB0 - Siemens
MPN6AG1223-1BF22-2XB0
***SPARE PART*** ***Spare part*** SIPLUS S7-200 EM223 -25...+70°C based on 6ES7223-1BF22-0XA0
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Digital outputs | 4 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| For signal "1" | 15 V DC to 30 V DC |
| For signal "0" | 0 to 5 V |
| Current for signal "1" (typ.) | 4 mA |
| Power loss (typ.) | 2 W |
| Current consumption from backplane bus (5 V DC), max. | 40 mA |
| Short-circuit protection | No |
| Isolation test voltage | 500 V AC |
| Max. cable length, shielded | 500 m |
| Max. cable length, unshielded | 150 m |
| Parameter | Value |
|---|---|
| Height | 80 mm |
| Width | 46 mm |
| Depth | 62 mm |
MPN
6AG1223-1BF22-2XB0
