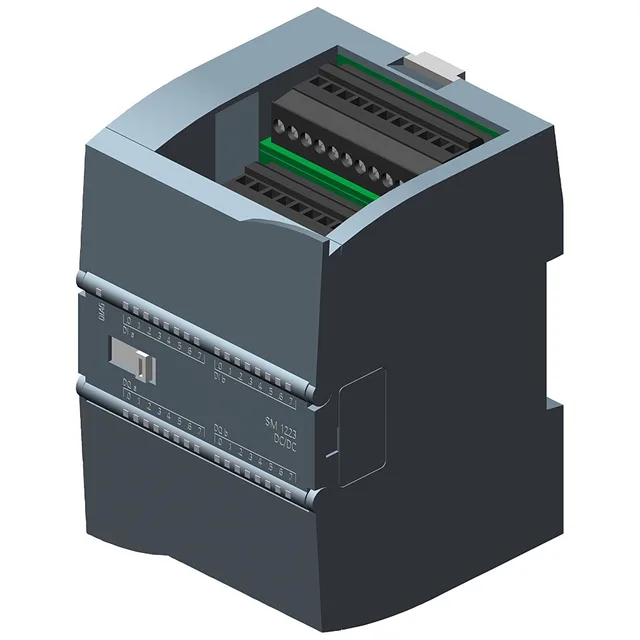

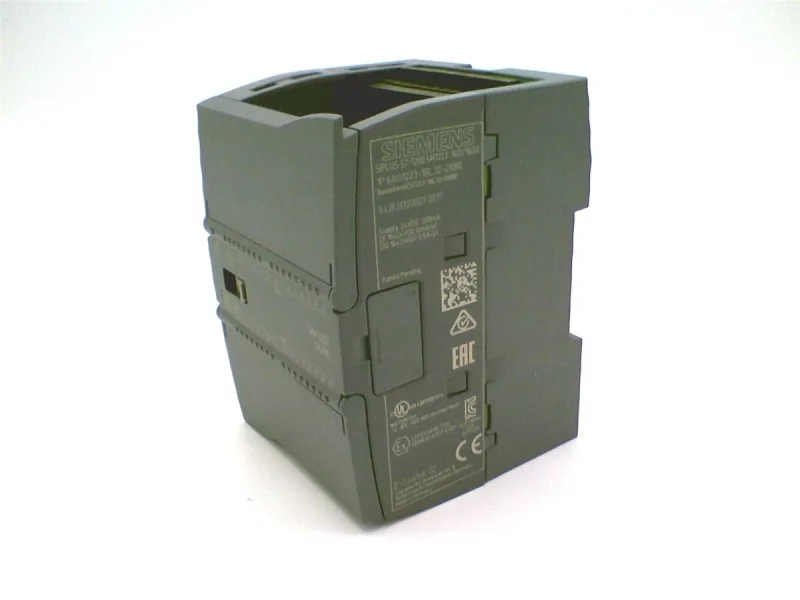

The 6AG1223-1BL32-2XB0: Drops into the same slot as the 6ES7223-1BH32-0XB0; same wiring, same footprint. The only delta is the temperature range. Fast nickel beats slow dime – RFQ this if your line needs that extended temp envelope. Otherwise, the standard version moves faster.
Delta vs 6ES7223-1BH32-0XB0
Operates from -40°C to 70°C with 16 inputs and 16 outputs. Parameterizable with diagnostic alarm; same footprint as standard variant.
Sourcing & Lifecycle
Current production – no end-of-life or last-time-buy notice on record. This is a standard Siemens catalog item, so supply runs steady through the distribution channel. We quote to order against an RFQ; typical lead times are consistent with the S7-1200 family. If you're freezing a BOM that needs the extended range, lock this code in.
Integration Notes
Mounts on the standard S7-1200 rail; requires a front connector (order separately). Wiring: unshielded cable runs up to 150 m, shielded up to 500 m. Input switching: signal '0' at ≤5 V / 1 mA, signal '1' at ≥15 V / 2.5 mA. Outputs: 0.5 A per channel resistive or inductive, no internal short-circuit protection – fuse externally. Diagnostic alarm and status bits are parameterizable via TIA Portal. Module power draw 4.5 W typ.
