The 6AG1223-1PH32-4XB0: The relay outputs handle up to 250 V AC or 30 V DC, with lamp loads up to 200 W AC or 30 W DC. No internal short-circuit protection—provide external fusing per channel or group. Diagnostics and alarms are built in, covering wire break, load supply, and channel status. The 45 mm wide footprint fits compact enclosures.

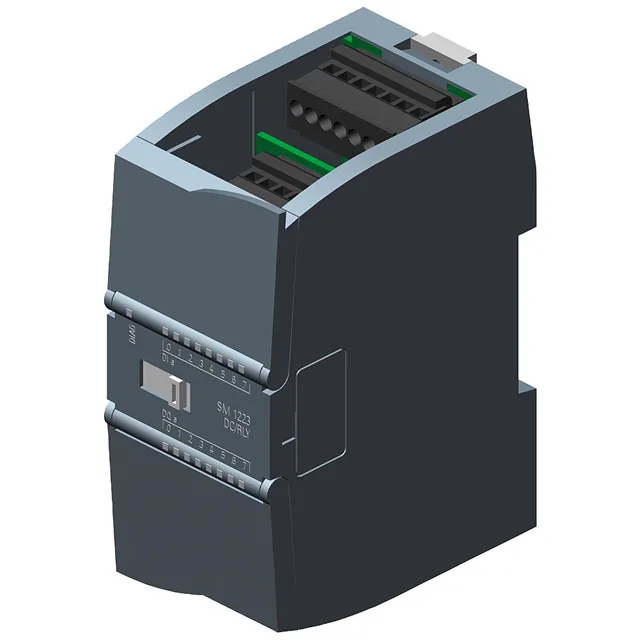

Siemens 6AG1223-1PH32-4XB0 SIPLUS S7-1200, 8DI/8DO Relay, -4
MPN6AG1223-1PH32-4XB0
Active
Siemens SIPLUS S7-1200 SM 1223, 8 DI / 8 DO relay, conformal coated, -40 … 70 °C, 24 V DC input, 5.5 W, 45 x 100 x 75 mm.
$508.74Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 8 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 5 V DC to 30 V DC |
| Permissible range, lower limit (DC) | 20.4 V |
| Permissible range, upper limit (DC) | 28.8 V |
| For signal "1" | 15 V DC at 2.5 mA |
| For signal "0" | 5 V DC at 1 mA |
| Current for signal "1" (typ.) | 4 mA |
| Max. | 70 °C |
| Power loss (typ.) | 5.5 W |
| Current consumption from backplane bus (5 V DC), max. | 145 mA |
| Current consumption from load voltage L+ (no load), max. | 4 mA/input 11 mA/relay |
| Short-circuit protection | No; to be provided externally |
| Isolation: between channels | Relays |
| Isolation: channels to backplane bus | 1 500 V AC for 1 minute |
| Max. cable length, shielded | 500 m |
| Max. cable length, unshielded | 150 m |
| Parameter | Value |
|---|---|
| Parameterizable | Yes |
| Diagnostic alarm | Yes |
| Diagnostics function | Yes |
| Parameter | Value |
|---|---|
| IP protection rating | IP20 |
| Min. | -40 °C |
| Parameter | Value |
|---|---|
| Height | 100 mm |
| Width | 45 mm |
| Depth | 75 mm |
| Weight (approx.) | 230 g |
| Parameter | Value |
|---|---|
| Rated value (AC) | 5 V AC to 250 V AC |
Product details
Frequently asked questions
Can I use this module in a panel originally designed for 6AG1223-1PH32-2XB0?
Yes, the -4XB0 variant is a drop-in replacement with identical mechanical footprint, terminal assignment, and electrical ratings. The only change is the conformal coating, which adds environmental protection without any wiring changes.
What is the operating temperature range?
The module is rated for -40 °C to 70 °C, covering cold storage, outdoor cabinets, and high-heat industrial settings.
Does the module have short-circuit protection on the outputs?
No, short-circuit protection is not provided internally and must be supplied externally per channel or group.
What front connector does this module require?
A front connector is required but not included. It is available separately and is the same type used for other S7-1200 SM modules.
