Siemens 6AG1231-5ND32-4XB0 — Analog Input Modules

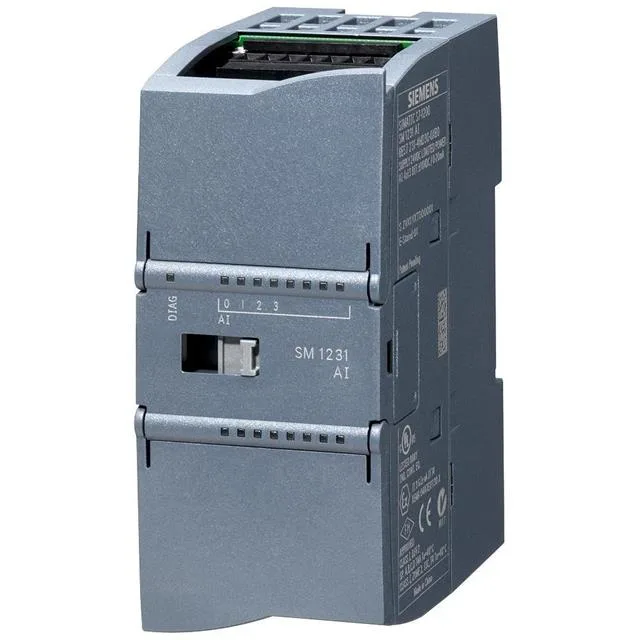

Siemens 6AG1231-5ND32-4XB0 SIPLUS S7-1200 4AI, -40-70°C

MPN6AG1231-5ND32-4XB0
Active

Siemens SIPLUS S7-1200 analog input module 6AG1231-5ND32-4XB0, 4 current/voltage differential inputs, 24 VDC, -40…70 °C, IP20.

$1,010.29Ref. price · indicative, final on quote
Siemens 6AG1231-5ND32-4XB0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6AG1231-5ND32-4XB0 — Inputs & Signal Ranges
ParameterValue
Number of analog inputs4; Current or voltage differential inputs
Current input rangeYes; 4 to 20 mA, 0 to 20 mA
Voltage input rangeYes; ±10V, ±5V, ±2.5V or ±1.25V
Resistance measuring rangesYes
RTD support (resistance thermometer)No
Thermocouple support (types)No
Input range: 0 to 20 mAYes
Input range: 4 to 20 mAYes
Input range: -10 to +10 VYes
Input range: -5 to +5 VYes
Input resistance (-10 to +10 V)≥9 MOhm
Permissible input voltage, max. (destruction limit)35 V
Permissible input current, max. (destruction limit)40 mA
6AG1231-5ND32-4XB0 — Measurement Performance
ParameterValue
Resolution (bit incl. sign), max.15 bit; + sign
Temperature measurement error (±)25 °C ±0.1% / ±0.3% total measurement range
Voltage measurement error (±)0.1 %
Current measurement error (±)0.1 %
Interference voltage suppression (at interference frequency)40 dB, DC to 60 V for interference frequency 50 / 60 Hz
Common-mode voltage, max.12 V
6AG1231-5ND32-4XB0 — Diagnostics & Monitoring
ParameterValue
Wire-break detectionYes
Diagnostic alarmYes
Diagnostics functionYes
Supply voltage monitoringYes
6AG1231-5ND32-4XB0 — Power
ParameterValue
Rated value (DC)24 V
Power loss, typ.1.8 W
6AG1231-5ND32-4XB0 — Mechanical
ParameterValue
Required front connectorYes
Width45 mm
Height100 mm
Depth75 mm
Weight, approx.180 g

Product details

Module profile

SIPLUS variant of the S7-1200 analog input, this 6AG1231-5ND32-4XB0 gives you 4 current or voltage differential inputs in a 45 mm wide package. It handles 4 to 20 mA, 0 to 20 mA, ±10 V, ±5 V, ±2.5 V, ±1.25 V ranges, plus resistance measurement and wire-break detection. Diagnostics and alarms are built in. Runs on 24 VDC, draws 65 mA typical, and dissipates 1.8 W.

Production status

Listed as current production. You can source this module against an RFQ with no lifecycle concerns.

Installation notes

Mounts on the S7-1200 rail. Requires the front connector (sold separately). Diagnostics are parameterizable. Cycle time all channels 625 µs.

Frequently asked questions

What is the closest functional second-source?

The standard S7-1200 analog input 6ES7231-5ND32-0XB0 shares the same channel count and differential inputs, but has a narrower temperature range.

What is the maximum operating temperature?

70 °C.

What is the minimum operating temperature?

-40 °C.

MPN
6AG1231-5ND32-4XB0
