6AG1231-5PF32-4XB0 - Siemens
MPN6AG1231-5PF32-4XB0
Active

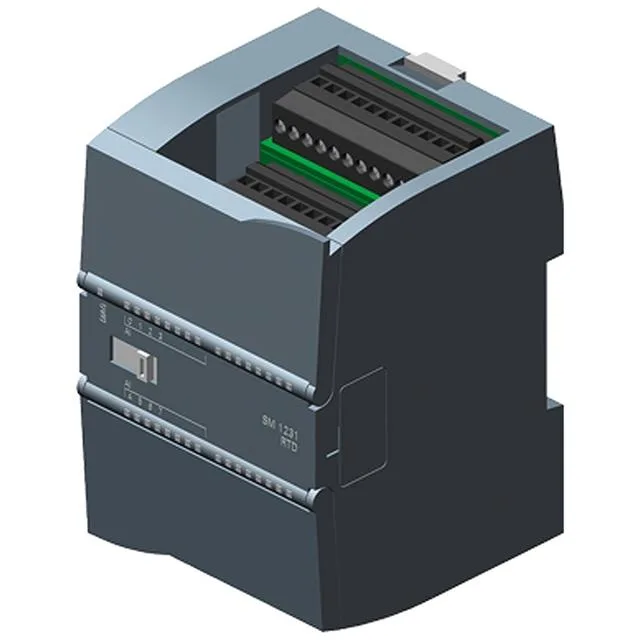

SIPLUS S7-1200 SM 1231 RTD 8AI based on 6ES7231-5PF32-0XB0 with conformal coating, -20…+60 °C, analog input, SM 1231 RTD, 8xAI RTD module
$1,424.46 – $1,475.34Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Inputs & Signal Ranges
| Parameter | Value |
|---|---|
| Number of analog inputs | 8; Resistance thermometer |
| Current input range | No |
| Voltage input range | No |
| Resistance measuring ranges | Yes; 150 Ω, 300 Ω, 600 Ω |
| RTD support (resistance thermometer) | Yes; Resistance-type transmitter: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000 |
| Thermocouple support (types) | No |
| Input range: 0 to 600 Ohm | Yes |
| RTD type: Pt100 | Yes |
| RTD type: Pt200 | Yes |
| Permissible input voltage, max. (destruction limit) | ±35 V |
Measurement Performance
| Parameter | Value |
|---|---|
| Resolution (bit incl. sign), max. | 15 bit; + sign |
| Measurement principle | integrating |
| Temperature measurement error (±) | 25 °C ±0.1%, to 55 °C ±0.2% total measurement range |
| Interference voltage suppression (at interference frequency) | 85 dB at 50 / 60 / 400 Hz |
| Common-mode interference suppression, min. | 120 dB |
Diagnostics & Monitoring
| Parameter | Value |
|---|---|
| Wire-break detection | Yes |
| Diagnostic alarm | Yes |
| Diagnostics function | Yes; Can be read out |
| Supply voltage monitoring | Yes |
Power
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss, typ. | 1.5 W |
Mechanical
| Parameter | Value |
|---|---|
| Required front connector | Yes |
| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
| Weight, approx. | 220 g |
MPN
6AG1231-5PF32-4XB0
