Conformal-coated analog output for extended-range environments

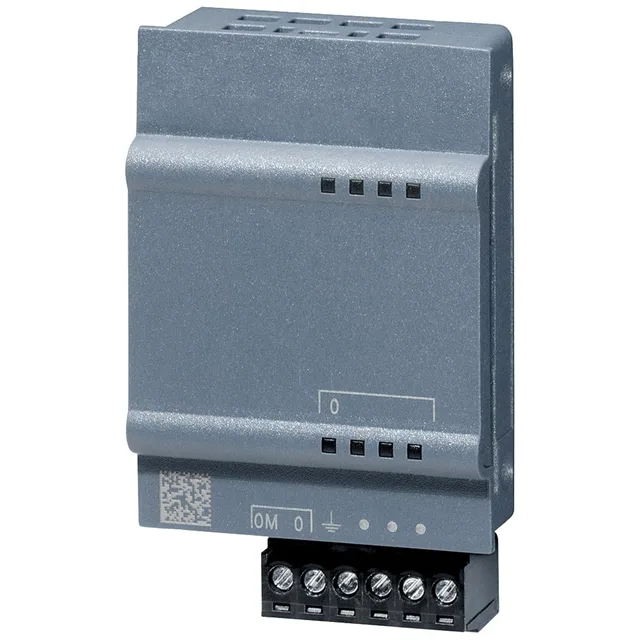

The 6AG1232-4HA30-5XB0 is a SIPLUS variant of the S7-1200 SB 1232 signal board, delivering one analog output channel in a compact 38 × 62 × 21 mm footprint that snaps directly onto the S7-1200 CPU — no separate backplane slot required.
Output range, resolution, and settling time
The single analog output swings ±10 V DC with 12-bit resolution (including sign) or 0–20 mA with 11-bit resolution, selectable per channel; the voltage output requires a minimum load of 1 000 Ω, while the current output drives up to 600 Ω. Cycle time depends on the output type and load: voltage settles in 300 µs (resistive) or 750 µs into 1 µF capacitive load; current output into 1 mH inductive load takes 600 ms, extending to 2 ms at 10 mH — a consideration when driving valve positioners or long cable runs. Temperature error is ±0.5 % at 25 °C, rising to ±1.8 % at 55 °C — the module's internal compensation holds the output within these bands across the full -40 to +70 °C range, provided the backplane supply stays within spec.
Environmental resilience and diagnostics
Beyond the extended temperature range, the module carries Type 1 protection against fouling per EN 60664-3, resists commercially available coolants and lubricants including diesel and oil droplets, and meets ANSI/ISA-71.04 level GX Group A/B for corrosive gas environments — salt spray and oil mist included. Diagnostics are built in: the module reports output status, alarms, and supports readback of the actual output value for loop verification during commissioning or fault-finding. Conformal coating (Class A per IPC-CC-830A) protects the PCB assembly against condensation and conductive contaminants — a requirement for installations above 2 000 m altitude where the reduced air pressure lowers the flashover threshold.
Active production — sourcing posture
No direct pin-compatible alternative exists within the SIPLUS line for this specific conformal-coated, extended-temperature analog output; the standard 6ES7232-4HA30-0XB0 shares the same form factor but lacks the coating and the -40 °C lower limit.
