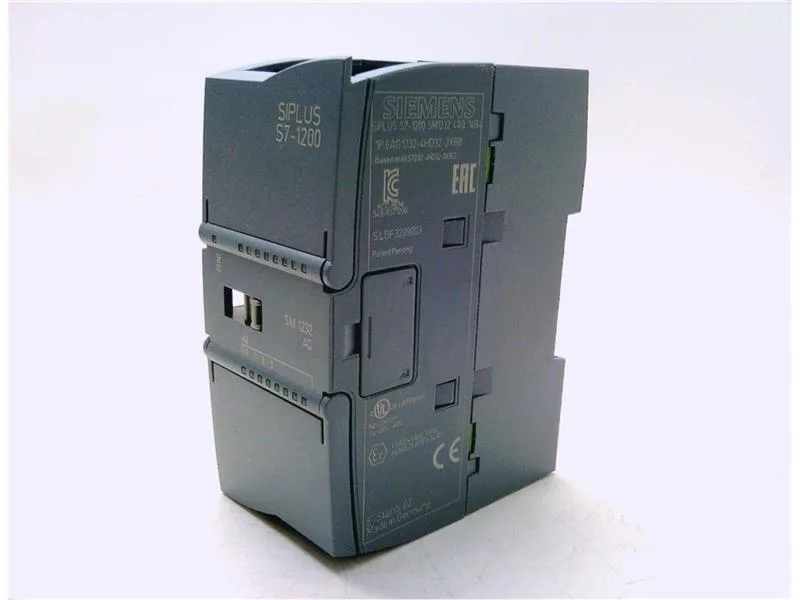

Siemens SIPLUS S7-1200 6AG1232-4HD32-2XB0, 4 analog outputs, current/voltage, -40 to 70 °C, IP20.
| Parameter | Value |
|---|---|
| Number of analog outputs | 4; Current or voltage |
| Output range: -10 V to +10 V | Yes |
| Output range: 0 to 20 mA | Yes |
| Load resistance, current outputs, max. | 600 Ω |
| Load resistance, voltage outputs, min. | 1 000 Ω |
| Parameter | Value |
|---|---|
| Resolution (incl. sign, with overrange), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
| Error, voltage output (rel. to output range) | 0.3 % |
| Error, current output (rel. to output range) | 0.3 % |
| Temperature error (rel. to output range) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Power loss (typ.) | 1.5 W |
| Parameter | Value |
|---|---|
| Supply voltage monitoring | Yes |
| Diagnostics function | Yes |
| Diagnostic interrupt/alarm | Yes |
| Wire-break detection (current outputs) | Yes |
| Short-circuit detection (voltage outputs) | Yes |
| Parameter | Value |
|---|---|
| Temperature, max. | 70 °C |
| Temperature, min. | -40 °C |
| Installation altitude, max. | 5 000 m |
| Parameter | Value |
|---|---|
| Front connector required | Yes |
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
The Siemens 6AG1232-4HD32-2XB0 is a SIPLUS variant of the standard S7-1200 analog output module, rated for the extended temperature range of -40 °C to 70 °C. It provides four analog outputs configurable as 0 to 20 mA or -10 V to +10 V, with per-channel diagnostics for wire-break and short-circuit.
Lifecycle stage is listed as current — no NRND status, no last-time-buy window. Sourced to order against an RFQ with lead time quoted at time of request.
It operates from -40 °C to 70 °C ambient.
It is available on a quoted-to-order basis. Submit an RFQ for current lead time and pricing.
