Siemens 6AG1234-4HE32-4XB0 — PLC I/O & Expansion Modules

Siemens 6AG1234-4HE32-4XB0 SIPLUS S7-1200 AI 4/AO 2, -40..70

MPN6AG1234-4HE32-4XB0
Active

Siemens SIPLUS S7-1200, SM 1234, 6AG1234-4HE32-4XB0, 4 analog inputs differential, 2 analog outputs, -40 to 70 °C, IP20, 24 V DC, 2 W.

$341.63 – $908.72Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6AG1234-4HE32-4XB0 — I/O
ParameterValue
Analog inputs4; Current or voltage differential inputs
6AG1234-4HE32-4XB0 — Electrical
ParameterValue
Rated value (DC)24 V
Max.70 °C
Power loss (typ.)2 W
6AG1234-4HE32-4XB0 — Performance
ParameterValue
Resolution incl. overrange (bit, with sign), max.14 bit; Voltage: 14 bit; Current : 13 bit
ParameterizableYes
Diagnostic alarmYes
Diagnostics functionYes
6AG1234-4HE32-4XB0 — Environmental
ParameterValue
IP protection ratingIP20
Min.-40 °C
6AG1234-4HE32-4XB0 — Mechanical
ParameterValue
Height100 mm
Width45 mm
Depth75 mm
Weight (approx.)220 g

Product details

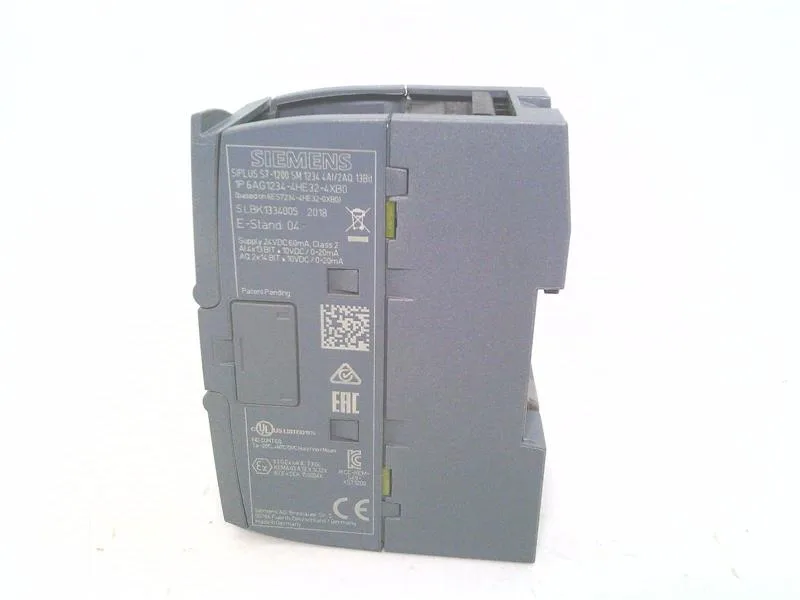

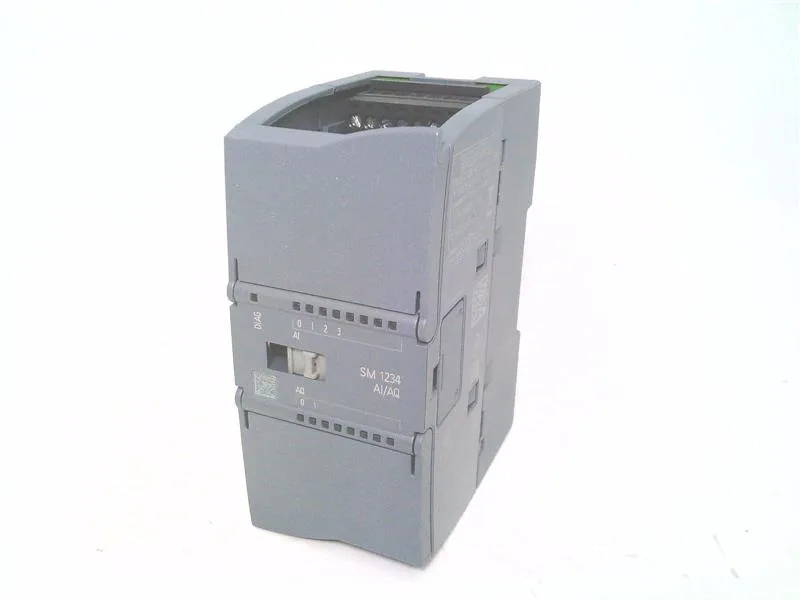

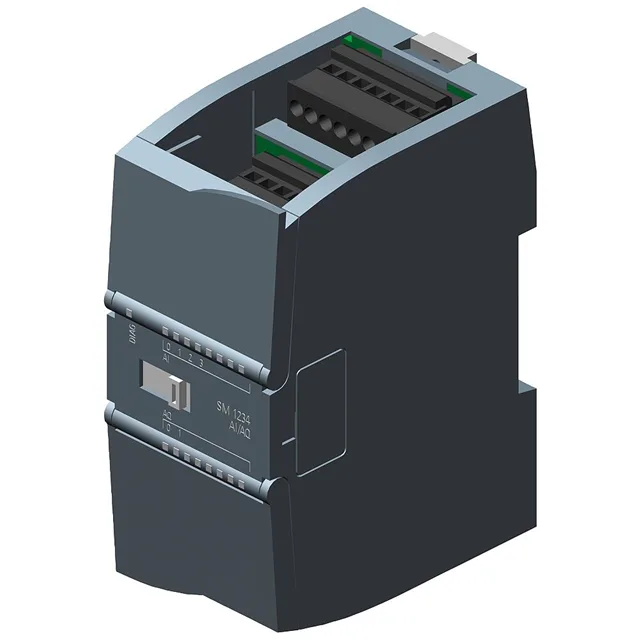

The Siemens 6AG1234-4HE32-4XB0 is a SIPLUS S7-1200 analog combo module with 4 differential voltage/current inputs and 2 voltage/current outputs, rated for -40 to 70 °C ambient. That temperature floor and ceiling are the main reason you'd reach for this variant over a standard S7-1200 analog module — the standard line tops out at 60 °C and bottoms at 0 °C. If your panel lives in a refrigerated warehouse, a freezer tunnel, or a desert cabinet, this is the part that stays within spec.

Four differential inputs accept ±10 V, ±5 V, ±2.5 V, 0–20 mA, or 4–20 mA — no thermocouple or RTD onboard, so those transducer types need their own signal conditioners. The two outputs mirror the same ranges, handy for driving a recorder or a setpoint valve without an extra AO module. Diagnostics include wire-break and short-circuit detection on the inputs, plus a diagnostic alarm that can be parameterized. The module draws 60 mA from the 24 V DC backplane bus, dissipating 2 W typical — well within the S7-1200 CPU power budget. Maximum common-mode voltage is 12 V. Differential inputs reject ground loops up to that limit; above it you'll need isolation on the field wiring. IP20 enclosure means it's for a clean, dry cabinet — no washdown.

Frequently asked questions

What temperature range does this module support?

Ambient temperature range is -40 °C to 70 °C, making it suitable for cold storage or high-heat cabinets.

Can the 6AG1234-4HE32-4XB0 replace a 6ES7231-4HD32-0XB0 without rewiring?

No. The 6ES7231-4HD32-0XB0 is an analog input-only module; the 6AG1234-4HE32-4XB0 adds two analog outputs and has a different terminal assignment and I/O count. Hardware configuration and wiring both change.
