Siemens 6AG1277-0AA22-2XA0 — PLC Communication Modules

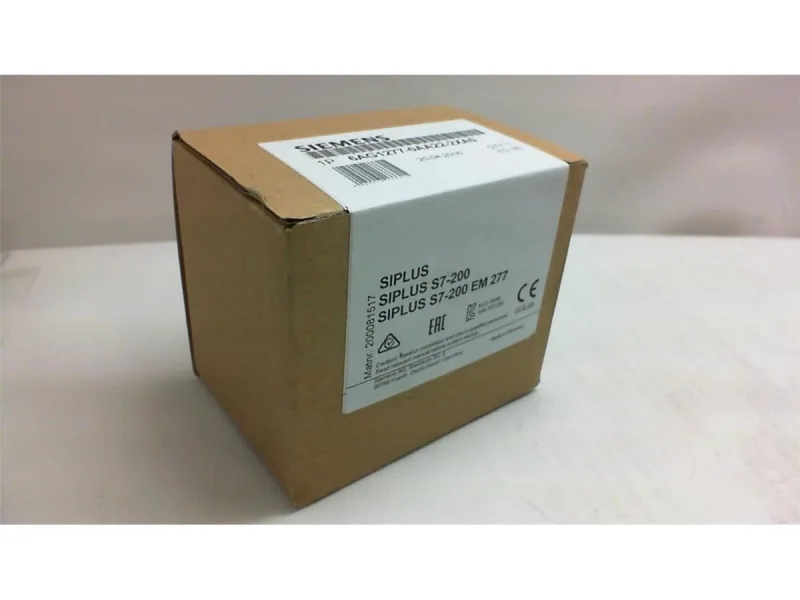

Siemens 6AG1277-0AA22-2XA0 SIPLUS EM 277

MPN6AG1277-0AA22-2XA0

***Spare Part*** ***Spare part*** SIPLUS S7-200 EM277 -25...+70°C based on 6ES7277-0AA22-0XA0

$257.47Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6AG1277-0AA22-2XA0 — Communication
ParameterValue
Transmission rate, max.12 Mbit/s
6AG1277-0AA22-2XA0 — Electrical
ParameterValue
Rated value (DC)24 V
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)20.4 V
Power loss (typ.)2.5 W
Isolation test voltagebetween external signal and control logic: 500 V AC (galvanic); 5 V DC interface: Isolation between output and module as well as 24 V DC supply voltage: 500 V AC (max. 1 min.); 24 V DC interface: Isolation no; same circuit as 24 V DC supply voltage
6AG1277-0AA22-2XA0 — Mechanical
ParameterValue
Width71.2 mm
Height80 mm
Depth62 mm
MPN
6AG1277-0AA22-2XA0
