Integration notes

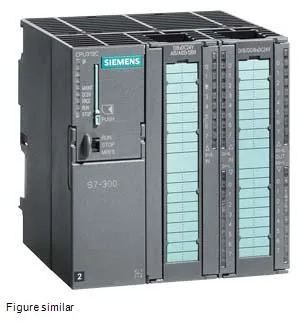

The 6AG1313-5BG04-7AB0: Mounts in a standard S7-300 rack. Width 120 mm, depth 130 mm, height 125 mm – single-width module. The unit has one MPI port, one RS 485 interface, and can drive up to 4 CPs via expansion (8 CPs in total for LAN and PtP). Retentive data requires a restart after each power cycle. Forcing and preset (preset = 10) are supported. The part does not route PROFIsafe and has no isolated backplane – isolation is on the CP side.
Compliance and documentation
CE marked and ATEX certified for potentially explosive atmospheres. That ATEX stamp is specific to the SIPLUS variant – standard S7-300 CPUs do not carry it. The unit also supports Pt100 directly and accepts ±20 mA / 100 Ω and 0–20 mA / 4–20 mA current loops. No RoHS or UL declaration appears in the public evidence, but as a CE-marked product it meets the applicable EU directives.
