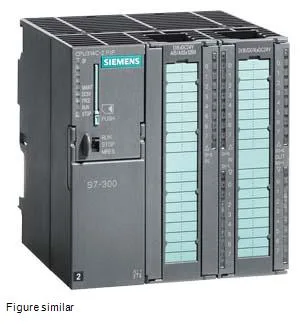

SIPLUS S7-300 CPU 314C based on 6ES7314-6BH04-0AB0 with conformal coating, -25…+70 °C, compact CPU with MPI, 24 DI/16 DQ, 4 AI, 2 AQ, 1 Pt100, 4 high-speed counters (60 kHz), integrated interface RS-485, integrated power supply 24 V DC, work memory 192 KB, front connector (2x 40-pole) and Micro Memory Card required
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
I/O
| Parameter | Value |
|---|---|
| Digital inputs | 24 |
| Digital outputs | 16 |
| Expandable | No |
| Input data area | 253 |
| Output data area | 250 |
Processor & Memory
| Parameter | Value |
|---|---|
| Execution time, bit operations (typ.) | 0.06 µs |
| Execution time, word operations (typ.) | 0.12 µs |
| Execution time, floating-point arithmetic (typ.) | 0.59 µs |
| Size, max. | 256 byte |
Programming
| Parameter | Value |
|---|---|
| Programming language: FBD | Yes |
| Programming language: LAD | Yes |
| Programming language: SCL | Yes |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Current consumption (rated) | 660 mA |
| Permissible range, lower limit (DC) | 19.2 V |
| Permissible range, upper limit (DC) | 28.8 V |
| Power loss (typ.) | 13 W |
| Short-circuit protection | Yes; Clocked electronically |
Environmental
| Parameter | Value |
|---|---|
| Installation altitude, max. | 5 000 m |
| Temperature, min. | -40 °C |
| Temperature, max. | 70 °C |
| Ambient temperature vs. altitude/pressure derating | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
Mechanical
| Parameter | Value |
|---|---|
| Width | 120 mm |
| Height | 125 mm |
| Depth | 130 mm |
| Weight (approx.) | 680 g |
Communication
| Parameter | Value |
|---|---|
| PROFINET CBA | No |
| Interface type | Integrated RS 422/ 485 interface |
MPN
6AG1314-6BH04-7AB0
