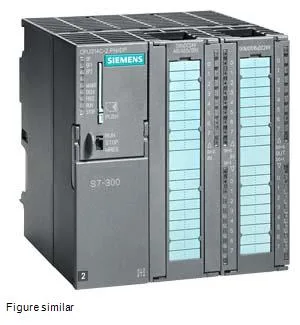

Siemens 6AG1314-6EH04-7AB0 SIPLUS CPU, -40 to +70°C

Specifications

6AG1314-6EH04-7AB0 — I/O
Parameter	Value
Digital inputs	24
Digital outputs	16
Expandable	No
Input data area	244 byte
Output data area	244 byte

6AG1314-6EH04-7AB0 — Processor & Memory
Parameter	Value
Execution time, bit operations (typ.)	0.06 µs
Execution time, word operations (typ.)	0.12 µs
Execution time, floating-point arithmetic (typ.)	0.59 µs
Size, max.	256 byte

6AG1314-6EH04-7AB0 — Programming
Parameter	Value
Programming language: FBD	Yes
Programming language: LAD	Yes
Programming language: SCL	Yes

6AG1314-6EH04-7AB0 — Electrical
Parameter	Value
Rated value (DC)	24 V
Current consumption (rated)	850 mA
Permissible range, lower limit (DC)	19.2 V
Permissible range, upper limit (DC)	28.8 V
Power loss (typ.)	14 W

6AG1314-6EH04-7AB0 — Environmental
Parameter	Value
Installation altitude, max.	5 000 m
Temperature, min.	-40 °C
Temperature, max.	70 °C
Ambient temperature vs. altitude/pressure derating	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

6AG1314-6EH04-7AB0 — Mechanical
Parameter	Value
Width	120 mm
Height	125 mm
Depth	130 mm
Weight (approx.)	730 g

6AG1314-6EH04-7AB0 — Communication
Parameter	Value
PROFINET CBA	Yes
Interface type	PROFINET

Product details

Environmental and hardware fit

The 6AG1314-6EH04-7AB0: Dimensions are 120 mm wide, 125 mm high, and 130 mm deep — occupies one slot in the S7-300 profile rail. The 244-byte input and 244-byte process-image area matches the standard CPU 314C mapping, so you can reuse the same I/O configuration. Preset at 10 as the default runtime meter counter.

Software and engineering tools

Programmable in all standard S7-300 languages: LAD, FBD, STL, SCL, GRAPH, and CFC. Supports forcing and routing. UDP communication is available via the integrated PROFINET interface and loadable function blocks. STEP 7 V5.5 or higher is required.

Frequently asked questions

Does this CPU include a PROFINET interface?

Yes, it has an integrated PROFINET interface with IRT support for isochronous real-time communication. It also supports UDP via loadable function blocks.

What is the I²t rating?

0.7 A²·s. This is the short-time withstand rating before the internal protection clears; keep that in mind when sizing the power supply or external fusing.

Can I use the same I/O map as the standard CPU 314C?

Yes, the process-image input/output size is 244 bytes each, identical to the standard variant. Preset counter at 10 matches as well.
