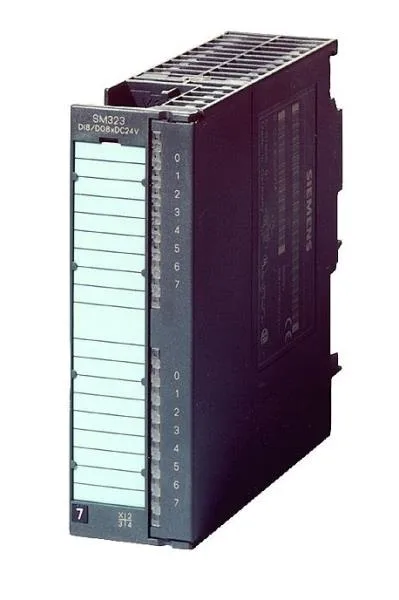

Siemens 6AG1323-1BH01-2AA0 Digital I/O Module
MPN6AG1323-1BH01-2AA0
SIPLUS S7-300 SM 323-20-pole based on 6ES7323-1BH01-0AA0 with conformal coating, -40…+70 °C, digital module isolated 8 DI and 8 DQ, 24 V DC, 0.5 A total current 2 A
$363.22Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Outputs
| Parameter | Value |
|---|---|
| Digital outputs | 8 |
Electrical
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Output current, resistive load, max. | 100 Hz |
| Output current at signal "1" (rated) | 0.5 A |
| Output current, max. per circuit / per module | 0.6 A |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 20.4 V |
| Output voltage at signal "1" (min.) | L+ (-0.8 V) |
| Residual current at signal "0", max. | 0.5 mA |
| Output current up to 60 °C, max. | 4 A |
| Current consumption from backplane bus (5 V DC), max. | 40 mA |
| Power dissipation (typ.) | 3.5 W |
| Inductive shutdown voltage clamp | L+ (-53 V) |
| Load resistance, upper limit | 4 kΩ |
| Load resistance, lower limit | 48 Ω |
| Isolation between channels | Yes |
| Isolation between channels and backplane bus | Yes; Optocoupler |
| Isolation, channels in groups of | 8 |
| Isolation test voltage | 500 V DC |
Protection & Diagnostics
| Parameter | Value |
|---|---|
| Short-circuit protection | Yes |
| Diagnostics function | No |
| Short-circuit response threshold (typ.) | 1 A |
| Redundant load control | Yes; only outputs of the same group |
| Output can drive a digital input | Yes |
Performance
| Parameter | Value |
|---|---|
| Output switching delay 0 to 1, max. | 100 µs |
| Output switching delay 1 to 0, max. | 500 µs |
| Switching frequency, inductive load, max. | 0.5 Hz |
| Switching frequency, lamp load, max. | 10 Hz |
Mechanical & Connection
| Parameter | Value |
|---|---|
| Cable length, unshielded, max. | 600 m |
| Cable length, shielded, max. | 1 000 m |
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
| Weight (approx.) | 220 g |
MPN
6AG1323-1BH01-2AA0
