Mounting and wiring

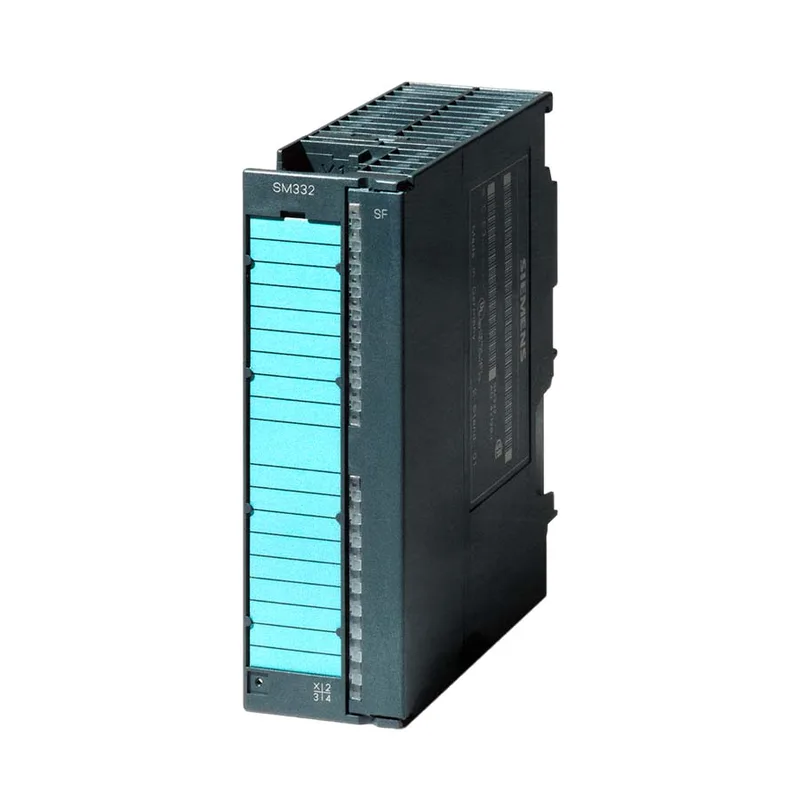

The 6AG1332-5HD01-4AB0: The module occupies a 40 mm wide slice on the DIN rail, 125 mm tall and 120 mm deep, and requires a 20-pin front connector (order separately). For current outputs, the maximum load is 500 Ω; for voltage outputs, minimum load is 1 kΩ. Shielded cable runs up to 200 m are permitted. Reverse polarity protection is built in on the 24 V supply.
Accuracy and isolation
Voltage output accuracy is within ±0.4% of the output range; current output accuracy within ±0.5%. The module provides 500 V DC isolation testing between channels and the backplane bus, and between channels and the load voltage L+. There is no isolation between the channels themselves, so all four outputs share a common reference.
