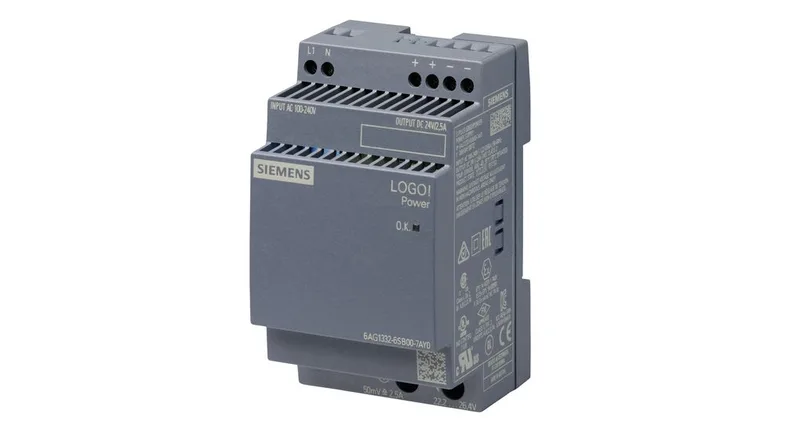

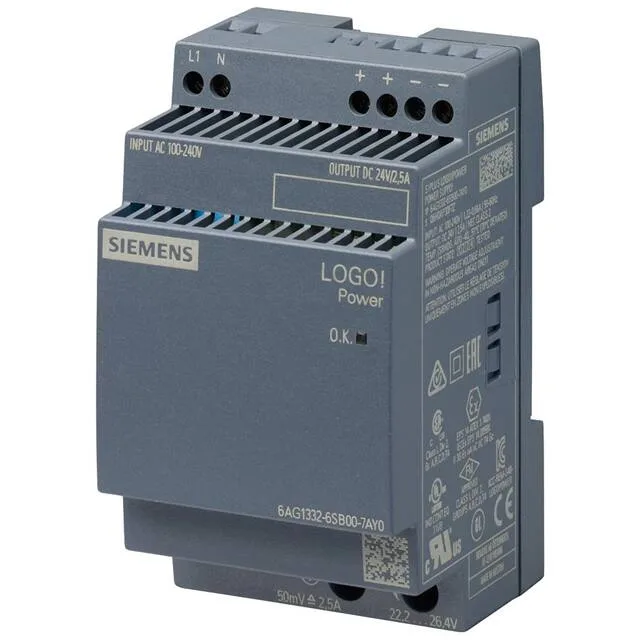

Name: 6AG1332-6SB00-7AY0
Brand: Siemens
SKU: 6AG1332-6SB00-7AY0
Availability: LimitedAvailability
Author: Broker Bao

Specifications

6AG1332-6SB00-7AY0 key specifications
Parameter	Value
Fuse protection type	internal
Type of electrical connection	screw-type terminals
Type of output voltage setting	via potentiometer
Type of the power supply network	1-phase AC or DC
Voltage curve at output	Controlled, isolated DC voltage
Adjustable output voltage	22.2 ... 26.4 V
At rated input voltage 120	1.22 A
At rated input voltage 230	0.66 A
Output voltage at DC rated value	24 V
On slow fluctuation of input voltage	0.1 %
Relative overall tolerance of the voltage	3 %
Product function output voltage adjustable	Yes

All specifications+63 ▾

6AG1332-6SB00-7AY0 additional specifications
Parameter	Value
Behavior of the output voltage when switching on	No overshoot of Vout (soft start)
At rated output voltage for rated value of the output current typical	7 W
Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.2 %
Design of Short-Circuit protection	Constant current characteristic
Measuring point for output current	50 mV =^ 2.5 A
Property of the output Short-Circuit proof	Yes
Current limitation of inrush current at 25 °C maximum	52 A
Buffering time for rated value of the output current in the event of power failure minimum	40 ms
Supplied active power typical	60 W
Number of Parallel-Switched equipment resources for increasing the power	2
Line frequency	47 ... 63 Hz
Depth of the enclosure	53 mm
Width of the enclosure	54 mm
Height of the enclosure	90 mm
Product feature of the enclosure housing can be lined up	Yes
In horizontal mounting position during operation	-40; Startup @ -25 °C ... +70 °C; with natural convection
Installation altitude at height above sea level maximum	6 000 m
Ambient condition relating to ambient temperature - air pressure - installation altitude	In case of operation at altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m or reduction of the ambient temperature by 5 K/1000 m
MTBF at 40 °C	2 864 520 h
CE marking	Yes
Top	20 mm
Left	0 mm
Right	0 mm
At DC	110 ... 300 V
Bottom	20 mm
Typical	3.2 A
At input	L, N: 1 screw terminal each for 0.5 ... 2.5 mm2 single-core/finely stranded
At output	+, -: 2 screw terminals each for 0.5 ... 2.5 mm²
Rated range	0 ... 2.5 A; +55 ... +70 °C: Derating 2%/K
Rated value	2.5 A
1 rated value	50 Hz
2 rated value	60 Hz
In the feeder	Recommended miniature circuit breaker: from 10 A characteristic B or from 6 A characteristic C
Initial value	85 V
Mounting	Snaps onto DIN rail EN 60715 35x7.5/15, direct mounting in different mounting positions
Full-Scale value	264 V
I2t value maximum	3 A²·s
Other information	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Maximum rated value	240 V
Minimum rated value	100 V
Protection class IP	IP20
Bridging of equipment	Yes
Efficiency in percent	90 %
Response delay maximum	0.5 s
For emitted interference	EN 55022 Class B
For interference immunity	EN 61000-6-2
Load step 10 to 90% typical	1 ms
Load step 90 to 10% typical	1 ms
During storage and transport	-40 ... +85 °C
At output 1 at DC rated value	24 V
Design of input wide range input	Yes
During NO-Load operation maximum	0.3 W
On slow fluctuation of ohm loading	0.1 %
Operating resource protection class	Class II (without protective conductor)
Design of the overvoltage protection	Yes, according to EN 60950-1
Display version for normal operation	Green LED for output voltage OK
Operating condition of the mains buffering	at Vin = 187 V
Galvanic isolation between input and output	Yes
Overcurrent overload capability when switching on	150% Iout rated typ. 200 ms
Overcurrent overload capability in normal operation	overload capability 150% Iout rated typ. 200 ms
Chemical resistance to commercially available cooling lubricants	Yes; incl. diesel and oil droplets in the air
Product conformity of the coating qualification and performance of electrical insulating compound for printed board assemblies according to IPC-CC-830A	Yes; Conformal Coating, Class A

Product details

Mounting and clearances

The 6AG1332-6SB00-7AY0: The 0 mm lateral clearance means you can pack units side-by-side without gap — useful in tight panels, but watch the derating table above 55 °C if airflow is restricted.

Output ratings and derating

Full output of 2.5 A is available from 0 to 55 °C ambient. From +55 °C to +70 °C, derate linearly at 2% per K. Below 85 V input the unit may not start; minimum operating voltage is 100 V AC (47–63 Hz).

Sourcing and compliance

Active lifecycle status — order against your BOM with standard lead times. CE marked, complies with EN 55022 Class B (emissions) and EN 61000-6-2 (immunity). Safety extra-low output per EN 60950-1 and EN 50178. Internal fuse; recommended upstream MCB 10 A B-curve or 6 A C-curve.
