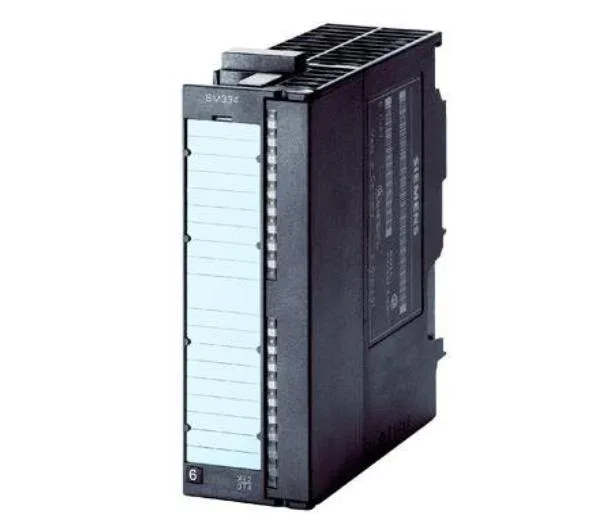

Siemens SIMATIC S7-300 SM 334, 4 analog inputs (Pt100, 0-10V, 0-10000 Ω), 2 analog outputs (0-10V), 24 V DC, 40 mm wide, -40 to 70 °C, UL E239877.
| Parameter | Value |
|---|---|
| Analog inputs | 4 |
| Parameter | Value |
|---|---|
| Rated value (DC) | 24 V |
| Max. | 70 °C |
| Power loss (typ.) | 2 W |
| Current consumption from backplane bus (5 V DC), max. | 60 mA |
| Reverse polarity protection | Yes |
| Isolation test voltage | 500 V DC |
| Isolation: between channels | No |
| Isolation: channels to backplane bus | Yes |
| Max. cable length, shielded | 100 m |
| Parameter | Value |
|---|---|
| Resolution incl. overrange (bit, with sign), max. | 12 bit |
| Parameterizable | Yes |
| Diagnostics function | No |
| Parameter | Value |
|---|---|
| Min. | -40 °C |
| Parameter | Value |
|---|---|
| Height | 125 mm |
| Width | 40 mm |
| Depth | 117 mm |
| Weight (approx.) | 200 g |
| Parameter | Value |
|---|---|
| CE mark | Yes |
The Siemens 6AG1334-0KE00-7AB0 is a mixed analog I/O module for the SIMATIC S7-300 system, carrying 4 inputs and 2 outputs in a single slot. The inputs accept Pt100 resistance thermometers (climatic-range-only), 0–10 V voltage, and resistive loads up to 10 kΩ; the outputs are 0–10 V, rated for a minimum load of 2.5 kΩ. All channels are isolated from the backplane bus with a 500 V DC test. Power draw is a typical 2 W from the 24 V DC backplane supply.
Rated from -40 °C to 70 °C ambient, covering both extreme cold and hot environments.
UL approved (File E239877), plus CE, KC, EAC, and RCM marks. The front connector must be ordered separately.
