Name: 6AG1334-3BA10-7AA0
Brand: Siemens
SKU: 6AG1334-3BA10-7AA0
Availability: LimitedAvailability
Author: Night-Shift Neil

Specifications

6AG1334-3BA10-7AA0 key specifications
Parameter	Value
Fuse protection type	T 6.3 A (not accessible)
Type of signal at output	Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
Type of electrical connection	screw-type terminals
Type of output voltage setting	via potentiometer
Type of the power supply network	1-phase and 2-phase AC
Voltage curve at output	Controlled, isolated DC voltage
Adjustable output voltage	24 ... 28.8 V
At rated input voltage 120	4.4 A
At rated input voltage 230	2.4 A
At rated input voltage 500	1.1 A
Output voltage at DC rated value	24 V
On slow fluctuation of input voltage	0.1 %

All specifications+67 ▾

6AG1334-3BA10-7AA0 additional specifications
Parameter	Value
Relative overall tolerance of the voltage	3 %
Product function output voltage adjustable	Yes
Behavior of the output voltage when switching on	Overshoot of Vout approx. 3 %
At rated output voltage for rated value of the output current typical	24 W
Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.1 %
At Short-Circuit during operation	25 ms
Design of Short-Circuit protection	Alternatively, constant current characteristic approx. 12 A or latching shutdown
At Short-Circuit during operation typical	30 A
Property of the output Short-Circuit proof	Yes
Display version for overload and short circuit	LED yellow for "overload", LED red for "latching shutdown"
On Short-Circuiting during the Start-Up typical	12 A
Current limitation of inrush current at 25 °C maximum	35 A
Buffering time for rated value of the output current in the event of power failure minimum	25 ms
Supplied active power typical	240 W
Number of Parallel-Switched equipment resources for increasing the power	2
Line frequency	47 ... 63 Hz
Depth of the enclosure	121 mm
Width of the enclosure	70 mm
Height of the enclosure	125 mm
Product feature of the enclosure housing can be lined up	Yes
In horizontal mounting position during operation	-25 ... +70 °C; with natural convection
Installation altitude at height above sea level maximum	6 000 m
Ambient condition relating to ambient temperature - air pressure - installation altitude	In case of operation at altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m or reduction of the ambient temperature by 5 K/1000 m
CE marking	Yes
Top	50 mm
Left	0 mm
Right	0 mm
Bottom	50 mm
1 at AC	85 ... 264 V
2 at AC	176 ... 550 V
Typical	0.32 mA
At input	L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded
At output	+, -: 2 screw terminals each for 0.2 ... 2.5 mm²
Rated range	0 ... 10 A; +60 ... +70 °C: Derating 2%/K (at 120 V, 230 V) or 3.5%/K (at 400 V)
Rated value	10 A
1 rated value	50 Hz
2 rated value	60 Hz
In the feeder	Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711-1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V
Initial value	Set by means of selector switch on the device
Mounting	Snaps onto DIN rail EN 60715 35x7.5/15
I2t value maximum	4 A²·s
Other information	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Protection class IP	IP20
Bridging of equipment	Yes; switchable characteristic
Efficiency in percent	91 %
Electrical accessories	Buffer module
For auxiliary contacts	13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²
Response delay maximum	1 s
For emitted interference	EN 55022 Class B
For interference immunity	EN 61000-6-2
During storage and transport	-40 ... +85 °C
Load step 100 to 50% typical	2 ms
Load step 50 to 100% typical	2 ms
At output 1 at DC rated value	24 V
For mains harmonics limitation	EN 61000-3-2
Overvoltage overload capability	1300 Vpeak, 1.3 ms
Design of input wide range input	Yes
During NO-Load operation maximum	6 W
On slow fluctuation of ohm loading	0.1 %
Operating resource protection class	Class I
Design of the overvoltage protection	< 35 V
Display version for normal operation	Green LED for 24 V OK
Operating condition of the mains buffering	at Vin = 120/230 V, typ. 150 ms at Vin = 400 V
Galvanic isolation between input and output	Yes
Chemical resistance to commercially available cooling lubricants	Yes; incl. diesel and oil droplets in the air
Product conformity of the coating qualification and performance of electrical insulating compound for printed board assemblies according to IPC-CC-830A	Yes; Conformal Coating, Class A

Product details

The 6AG1334-3BA10-7AA0 switched-mode power supply: adjustable output 24-28.8 V DC, rated 10 A, efficiency 91 %. Input 85-264 V AC single-phase or 176-550 V AC two-phase, 47-63 Hz; output galvanically isolated SELV per EN 60950-1 and EN 50178.

Compliance: CE marking, emission per EN 55022 Class B, immunity per EN 61000-6-2. Rated for industrial environments.

Input terminals: L, N, PE — one screw terminal each for 0.2..2.5 mm² single-core or finely stranded. Output terminals: +, - two terminals each for 0.2..2.5 mm². Auxiliary contact 13, 14 (alarm) for 0.14..1.5 mm². Internal non-accessible fuse T 6.3 A. Buffer module available as accessory.

Specifications

6AG1334-3BA10-7AA0 key specifications
Parameter	Value
Fuse protection type	T 6.3 A (not accessible)
Type of signal at output	Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
Type of electrical connection	screw-type terminals
Type of output voltage setting	via potentiometer
Type of the power supply network	1-phase and 2-phase AC
Voltage curve at output	Controlled, isolated DC voltage
Adjustable output voltage	24 ... 28.8 V
At rated input voltage 120	4.4 A
At rated input voltage 230	2.4 A
At rated input voltage 500	1.1 A
Output voltage at DC rated value	24 V
On slow fluctuation of input voltage	0.1 %

All specifications+67 ▾

6AG1334-3BA10-7AA0 additional specifications
Parameter	Value
Relative overall tolerance of the voltage	3 %
Product function output voltage adjustable	Yes
Behavior of the output voltage when switching on	Overshoot of Vout approx. 3 %
At rated output voltage for rated value of the output current typical	24 W
Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.1 %
At Short-Circuit during operation	25 ms
Design of Short-Circuit protection	Alternatively, constant current characteristic approx. 12 A or latching shutdown
At Short-Circuit during operation typical	30 A
Property of the output Short-Circuit proof	Yes
Display version for overload and short circuit	LED yellow for "overload", LED red for "latching shutdown"
On Short-Circuiting during the Start-Up typical	12 A
Current limitation of inrush current at 25 °C maximum	35 A
Buffering time for rated value of the output current in the event of power failure minimum	25 ms
Supplied active power typical	240 W
Number of Parallel-Switched equipment resources for increasing the power	2
Line frequency	47 ... 63 Hz
Depth of the enclosure	121 mm
Width of the enclosure	70 mm
Height of the enclosure	125 mm
Product feature of the enclosure housing can be lined up	Yes
In horizontal mounting position during operation	-25 ... +70 °C; with natural convection
Installation altitude at height above sea level maximum	6 000 m
Ambient condition relating to ambient temperature - air pressure - installation altitude	In case of operation at altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m or reduction of the ambient temperature by 5 K/1000 m
CE marking	Yes
Top	50 mm
Left	0 mm
Right	0 mm
Bottom	50 mm
1 at AC	85 ... 264 V
2 at AC	176 ... 550 V
Typical	0.32 mA
At input	L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded
At output	+, -: 2 screw terminals each for 0.2 ... 2.5 mm²
Rated range	0 ... 10 A; +60 ... +70 °C: Derating 2%/K (at 120 V, 230 V) or 3.5%/K (at 400 V)
Rated value	10 A
1 rated value	50 Hz
2 rated value	60 Hz
In the feeder	Recommended miniature circuit breaker at 1-phase operation: from 6 A (10 A) characteristic C (B); required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2011-1EA10 (setting 3.8 A) or 3RV2711-1ED10 (UL 489) at 230 V; 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489) at 400/500 V
Initial value	Set by means of selector switch on the device
Mounting	Snaps onto DIN rail EN 60715 35x7.5/15
I2t value maximum	4 A²·s
Other information	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
Protection class IP	IP20
Bridging of equipment	Yes; switchable characteristic
Efficiency in percent	91 %
Electrical accessories	Buffer module
For auxiliary contacts	13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²
Response delay maximum	1 s
For emitted interference	EN 55022 Class B
For interference immunity	EN 61000-6-2
During storage and transport	-40 ... +85 °C
Load step 100 to 50% typical	2 ms
Load step 50 to 100% typical	2 ms
At output 1 at DC rated value	24 V
For mains harmonics limitation	EN 61000-3-2
Overvoltage overload capability	1300 Vpeak, 1.3 ms
Design of input wide range input	Yes
During NO-Load operation maximum	6 W
On slow fluctuation of ohm loading	0.1 %
Operating resource protection class	Class I
Design of the overvoltage protection	< 35 V
Display version for normal operation	Green LED for 24 V OK
Operating condition of the mains buffering	at Vin = 120/230 V, typ. 150 ms at Vin = 400 V
Galvanic isolation between input and output	Yes
Chemical resistance to commercially available cooling lubricants	Yes; incl. diesel and oil droplets in the air
Product conformity of the coating qualification and performance of electrical insulating compound for printed board assemblies according to IPC-CC-830A	Yes; Conformal Coating, Class A

Product details

Compliance: CE marking, emission per EN 55022 Class B, immunity per EN 61000-6-2. Rated for industrial environments.

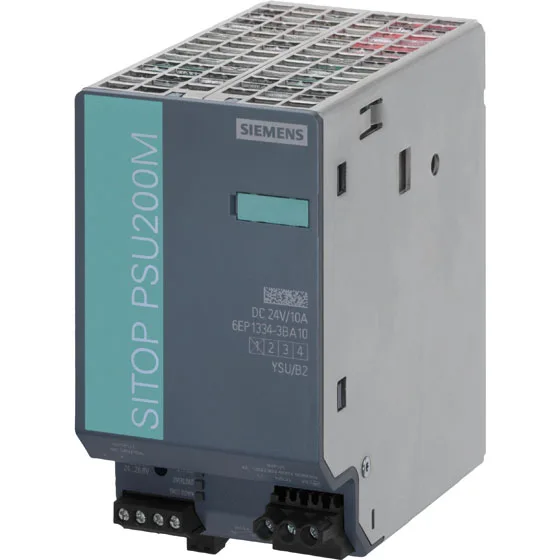

Siemens 6AG1334-3BA10-7AA0 SITOP PSU8200, 24-28.8V 10A
