Siemens 6AG1365-0BA01-2AA0 — PLCs (Programmable Logic Controllers)

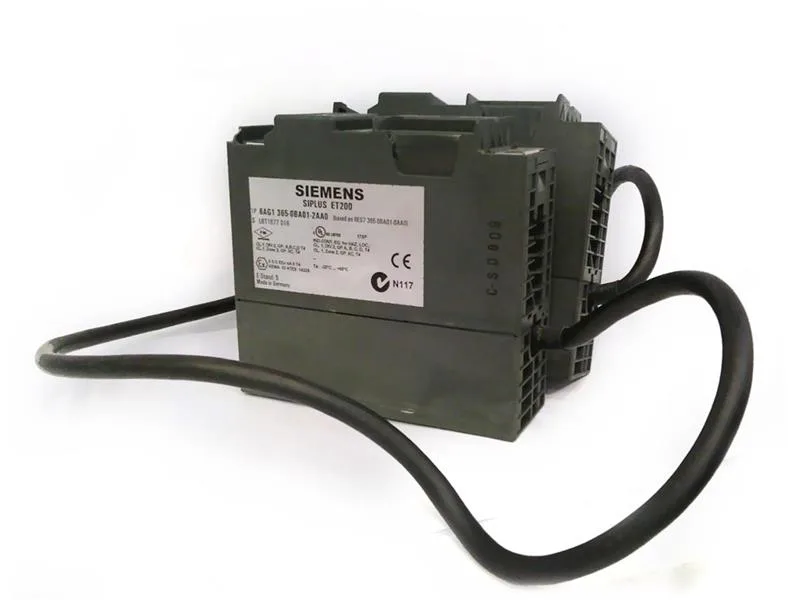

Siemens 6AG1365-0BA01-2AA0 SIPLUS S7-300 IM 365, EN 50155

MPN6AG1365-0BA01-2AA0

Siemens SIPLUS S7-300 IM 365 interface module, 6AG1365-0BA01-2AA0, conformal coating, -40 to 70°C, EN 50155 railway approved.

$243.84Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

6AG1365-0BA01-2AA0 — Electrical
ParameterValue
Power loss (typ.)0.5 W
6AG1365-0BA01-2AA0 — Environmental
ParameterValue
Installation altitude, max.5 000 m
Temperature, min.-40 °C
Temperature, max.70 °C
Ambient temperature vs. altitude/pressure deratingTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
6AG1365-0BA01-2AA0 — Mechanical
ParameterValue
Width40 mm
Height125 mm
Depth120 mm
Weight (approx.)580 g

Product details

Ratings and approvals

EN 50155 T1 Category 1 Class A/B (sections 4,5,12) plus CE, UL (E239877), KC, EAC, RCM. Rated for corrosive gas, salt spray, and oil (Level GX, LC3, LB3).

Integration notes

Mounts on a standard S7-300 rail. Dimensions 40 x 125 x 120 mm. Backplane consumption is 100 mA at 5 V DC; the power supply for railway installations must comply with EN 50155. The connecting cable between racks is included with the module. No communications bus on the extension rack — this IM is for I/O racks without K-bus. Cooling is natural; power loss is typical 0.5 W. Ensure altitude derating per the temperature/pressure table when operating above 2 000 m.

This module carries the full set of international approvals: CE, UL, KC, EAC, RCM, and EN 50155. Documentation such as the declaration of conformity and UL certificate is available from Siemens. Genuine is genuine — same part, different passport.

Frequently asked questions

What are the key temperature ratings?

The module is rated for operation from -40 °C to 70 °C. Note that the conformal coating variant is specified for -25 °C to +60 °C in the product description, which represents the derated range for the coated assembly.

What compliance documentation is available for this module?

The module carries CE marking, UL approval (File E239877), KC, EAC, and RCM. It is certified to EN 50155 for railway rolling stock. The declaration of conformity and UL certificate are available from Siemens.

What is the maximum altitude for installation?

The module can be installed at altitudes up to 5 000 m above sea level. Above 2 000 m, derate the maximum ambient temperature by 10 K per 1 000 m increment.

MPN
6AG1365-0BA01-2AA0
