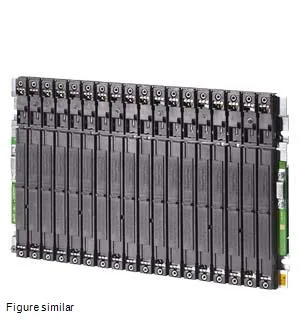

Siemens SIPLUS S7-400 rack UR2-H, 18 slots (2x9), conformal coating, -25…70°C, active.
| Parameter | Value |
|---|---|
| Width | 482.5 mm |
| Height | 290 mm |
| Depth | 27.5 mm |
| Weight (approx.) | 3 000 g |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| Ambient temperature vs. altitude / pressure | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Installation altitude, max. | 5 000 m |
| Conformal coating (IPC-CC-830A) | Yes; Conformal coating, Class A |
| Pollution protection (EN 60664-3) | Yes; Type 1 protection |
| Corrosive-gas conditions (ISA-71.04) | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Parameter | Value |
|---|---|
| P bus | Yes |
| Number of slots | 18 |
| Communication bus | Yes |
| Number of single-width slots, max. | 18 |
The Siemens 6AG1400-2JA10-7AA0 is a SIPLUS S7-400 rack UR2-H with conformal coating, rated for operation from -25 °C to 70 °C and offering 18 slots in a 2x9 configuration. It is the ruggedized variant of the standard S7-400 rack, designed for environments where condensation, corrosive gases, or wide temperature swings are present.
The SIPLUS variant adds conformal coating and extends the temperature range to -25 °C to 70 °C, minimum -40 °C.
The rated operating temperature range is -25 °C to 70 °C, with a minimum temperature specification of -40 °C.
