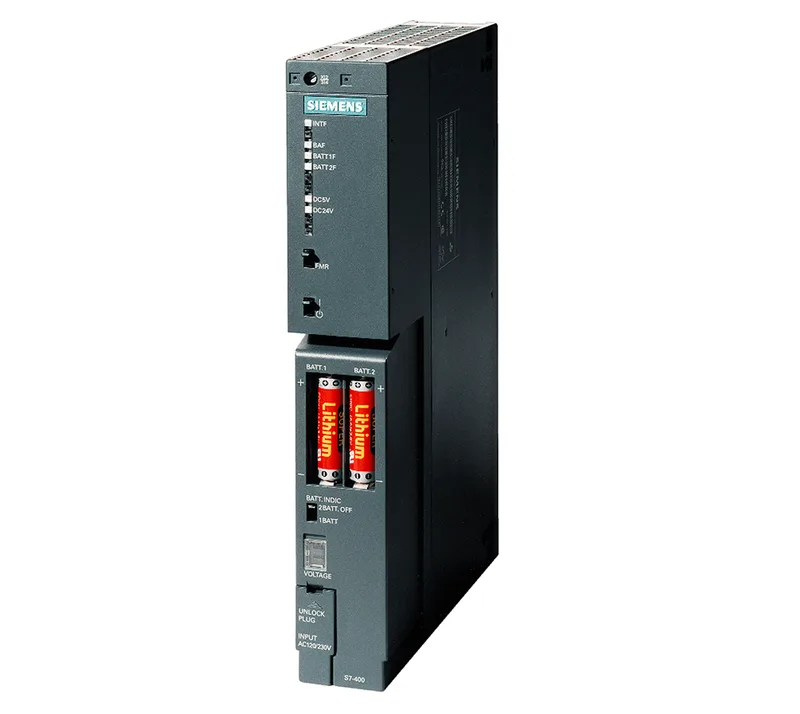

Siemens 6AG1407-0KA02-7AA0 Power Supply
MPN6AG1407-0KA02-7AA0
Active
SIPLUS S7-400 PS 407 10 A based on 6ES7407-0KA02-0AA0 with conformal coating, -25…+70 °C, 10 A, wide range, 120/230 V UC; 5 V DC/10 A
$1,282.70 – $3,525.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Performance
| Parameter | Value |
|---|---|
| Required slots | 2 |
Electrical
| Parameter | Value |
|---|---|
| Power loss (typ.) | 20 W |
Mechanical
| Parameter | Value |
|---|---|
| Width | 50 mm |
| Height | 290 mm |
| Depth | 217 mm |
| Weight (approx.) | 1 200 g |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C; using the external battery box SIPLUS 6AG1971-0AA00-7AA0 for buffer mode |
| Operating temperature, min. | -25 °C; using the external battery box SIPLUS 6AG1971-0AA00-7AA0 for buffer mode |
| Ambient temperature vs. altitude / pressure | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) |
| Installation altitude, max. | 2 000 m |
| Conformal coating (IPC-CC-830A) | Yes; Conformal coating, Class A |
| Pollution protection (EN 60664-3) | Yes; Type 1 protection |
| Corrosive-gas conditions (ISA-71.04) | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
MPN
6AG1407-0KA02-7AA0
