Siemens 6AG1422-1BL00-2AA0 — Industrial PCs

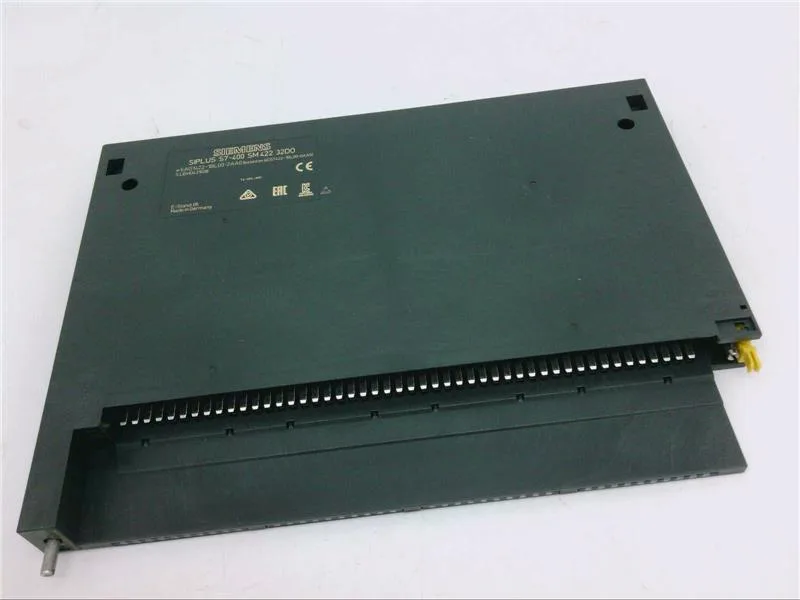

Siemens 6AG1422-1BL00-2AA0 SIPLUS S7-400 SM 422 32-DO 24V DC

MPN6AG1422-1BL00-2AA0

NRND

Siemens 6AG1422-1BL00-2AA0 — now in phase-out and being discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$624.84Ref. price · indicative, final on quote

Add to RFQ

Siemens 6AG1422-1BL00-2AA0 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6AG1422-1BL00-2AA0 — Electrical
Parameter	Value
Power loss (typ.)	4 W

6AG1422-1BL00-2AA0 — Mechanical
Parameter	Value
Width	25 mm
Height	290 mm
Depth	210 mm
Weight (approx.)	600 g

6AG1422-1BL00-2AA0 — Environmental
Parameter	Value
Operating temperature, max.	70 °C
Operating temperature, min.	-40 °C
Ambient temperature vs. altitude / pressure	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Installation altitude, max.	5 000 m
Conformal coating (IPC-CC-830A)	Yes; Conformal coating, Class A
Pollution protection (EN 60664-3)	Yes; Type 1 protection
Corrosive-gas conditions (ISA-71.04)	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Product details

Overview

The 6AG1422-1BL00-2AA0 is a Siemens SIPLUS S7-400 SM 422 digital output module delivering 32 outputs at 24 V DC rated load voltage, each channel rated for 0.5 A continuous. The module draws 4.0 W from the backplane and occupies 25 mm on the DIN rail.

The outputs are short-circuit protected with a typical response threshold between 0.7 A and 1.5 A. The module supports digital input control, meaning the outputs can be read back for diagnostic purposes. Isolation test voltage is 500 V, and the switching frequency for lamp loads is limited to 10 Hz. The signal level for a logic 1 is L+ minus 0.3 V, ensuring compatibility with standard 24 V PLC I/O.
