Optical PROFIBUS Link with Conformal Coating

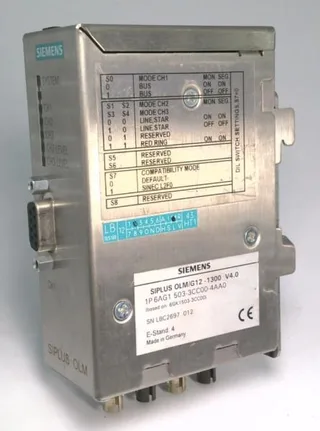

The Siemens 6AG1503-3CC00-4AA0 is a SIPLUS NET OLM/G12-1300 V4.0 optical link module, a hardened variant of the standard 6GK1503-3CC00 with conformal coating, rated for 0 to +60 °C ambient in horizontal mounting. It provides two BFOC optical interfaces operating at 1310 nm single-mode, connecting PROFIBUS segments over fiber at transfer rates from 9.6 kbit/s up to 12 Mbit/s (PROFIBUS DP) and 45.45 kbit/s (PROFIBUS PA). Powered from a 24 VDC supply (nominal), it draws a maximum of 0.2 A; a redundant voltage supply input is available for increased availability. Propagation delay is 6.5 bit.
