PROFINET IRT and PROFIsafe define the system fit

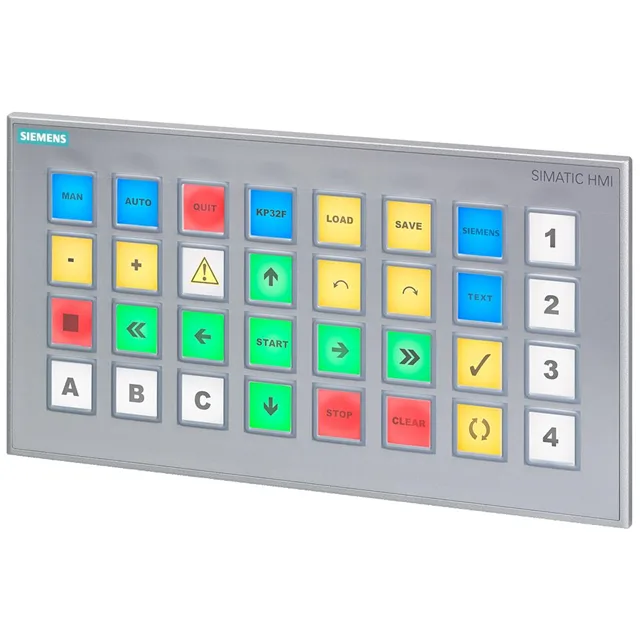

The 6AG1688-3EH47-2AX0 is a SIMATIC HMI operator interface wired onto PROFINET with IRT support — meaning it sits on a determinism-grade network segment where cycle times are scheduled rather than best-effort, which is the prerequisite for any synchronized drive or safety traffic on the same line. PROFIsafe is enabled for either 2x SIL 3 (two-channel) or 4x SIL 2 (single-channel) emergency-stop sensors, so the panel doubles as a safety participant in the same PROFINET ring instead of needing a separate safety bus.
CPU and engineering-tool pairing
Compatibility with the S7-1500 is direct, and the S7-1200 line is supported via the ET 200pro CPU and ET 200S CPU — so the same panel drops onto both the high-end and the distributed-controller architectures. S7-300/400 integration requires an F-CPU with STEP 7 V11 SP1 or higher plus Safety V11 (or higher); without an F-CPU the same panel still works but on STEP 7 or SIMATIC STEP 7 Basic V11 (or higher). That split is the line the panel-builder has to track on legacy retrofits.
Bus exclusion list narrows the sourcing target
The bus matrix is sharply negative — CAN, MPI, MODBUS, PROFIBUS, SERCOS, EtherNet/IP, AS-Interface, INTERBUS, DeviceNet, SafetyBUS p, EIB/KNX, SUCOnet, PROFINET CBA, Data-Highway are all listed No. A buyer looking for a second-source panel must hold the requirement to PROFINET IRT and PROFIsafe; no other industrial Ethernet or legacy fieldbus on this part will substitute, which rules out a meaningful form-fit-function cross from another vendor.
Panel-side environmental envelope
Operating range spans -20 °C to 60 °C, so the panel survives unheated cabinets and warmer enclosure pockets without derating. Rear sealing is IP20, which dictates an enclosure-rated install — the panel is meant to be mounted inside a cabinet, not on a washdown-facing surface. Mechanical fit is a mounting-clip install with 69 mm overall depth including the angled SIMATIC Ethernet connector — the connector profile is the dimension that drives rear clearance, not the bezel.
Display color set and runtime positioning
The color rendering set is full — Red, Blue, Green, Yellow, and White are all listed Yes, so the panel can drive status and alarm palettes without monochrome fallbacks. WinAC support is Yes, which keeps the panel usable as a soft-PLC HMI; LOGO!, SIMOTION, and SINUMERIK are listed No. The housing is aluminum rather than plastic, matching the SIMATIC panel family build.
Sourcing posture
The PROFINET IRT and PROFIsafe capability, paired with the -20 to 60 °C range and aluminum housing, fixes this as a Siemens SIMATIC HMI panel position; cross-vendor substitution is not on the table given the bus exclusion list.
