Siemens 6AG1960-1AA06-7XA0 — PLCs (Programmable Logic Controllers)

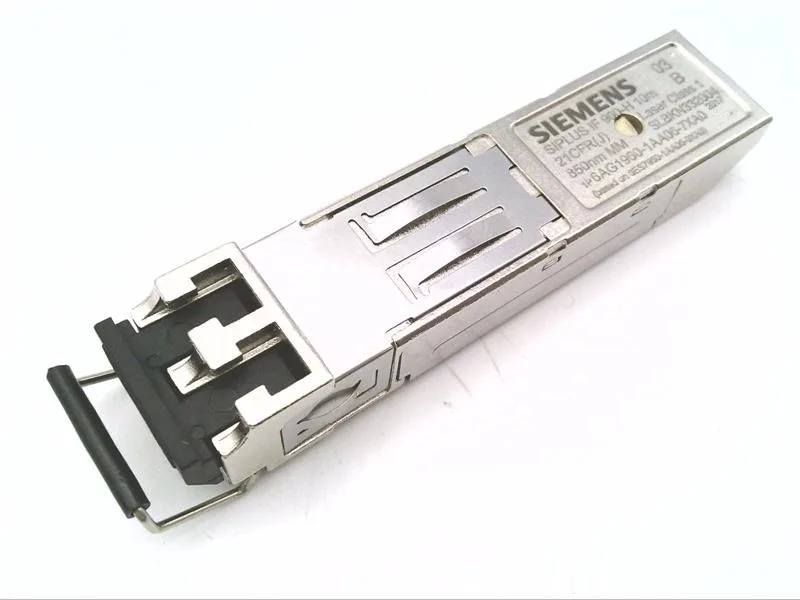

Siemens 6AG1960-1AA06-7XA0 SIPLUS S7-400 Sync Module

MPN6AG1960-1AA06-7XA0
Active

Siemens SIPLUS S7-400 sync module, 6AG1960-1AA06-7XA0, conformal coated, -25…+70 °C, 220 mA max, 0.77 W typ, 13 x 14 x 58 mm.

$554.99Ref. price · indicative, final on quote
Siemens 6AG1960-1AA06-7XA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

6AG1960-1AA06-7XA0 — Electrical
ParameterValue
Power loss (typ.)0.77 W
6AG1960-1AA06-7XA0 — Environmental
ParameterValue
Installation altitude, max.5 000 m
Temperature, min.-25 °C; = Tmin
Temperature, max.70 °C; = Tmax; @ 60°C for UL/ATEX/FM use
Ambient temperature vs. altitude/pressure deratingTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
6AG1960-1AA06-7XA0 — Mechanical
ParameterValue
Width13 mm
Height14 mm
Depth58 mm
Weight (approx.)14 g
6AG1960-1AA06-7XA0 — Other specifications
ParameterValue
Current consumption, max.220 mA
Protection against fouling acc. to EN 60664-3Yes; Type 1 protection
Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Qualification and performance of electrical insulating compound for printed board assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Product details

What the extended temperature range means for your cabinet

The 6AG1960-1AA06-7XA0 is a SIPLUS S7-400 synchronization module V6 for patch cable up to 10 m, built on the standard 6ES7960-1AA06-0XA0 hardware but with conformal coating and a wider operating range of -25 °C to +70 °C. For UL/ATEX/FM installations the max drops to 60 °C, so factor that into the zone classification.

Conformal coating — the difference from the standard module

The conformal coating (IPC-CC-830A Class A) is the key differentiator from the base 6ES7960-1AA06-0XA0. It protects the PCB assembly against condensation, salt spray (level LC3), oil (level LB3), and corrosive gases up to EN 60721-3-3 class 3C4 levels. If your line runs in a humid, oily, or chemically aggressive environment — food processing, wastewater, chemical dosing — this coating is what keeps the sync module alive when the standard one would fail.

Frequently asked questions

What is the difference between 6AG1960-1AA06-7XA0 and 6ES7960-1AA06-0XA0?

The 6AG1960-1AA06-7XA0 is the SIPLUS version of the standard 6ES7960-1AA06-0XA0 sync module. It adds conformal coating (IPC-CC-830A Class A) and extends the operating temperature range to -25 °C to +70 °C, compared to the standard module's narrower range. The base functionality — synchronization V6 for patch cable up to 10 m — is identical.

Where can I buy Siemens 6AG1960-1AA06-7XA0?

Submit an RFQ with your target quantity; we confirm availability and current pricing at quote time. No stock-holding claim — each order is verified against the supply channel.

Does the 6AG1960-1AA06-7XA0 have conformal coating?

Yes. The module carries conformal coating qualified to IPC-CC-830A Class A, which protects the PCB assembly against moisture, salt spray, oil, and corrosive gases up to EN 60721-3-3 class 3C4 levels.

Is the 6AG1960-1AA06-7XA0 compatible with existing S7-400 systems?

Yes. It is a direct form-fit-function replacement for the standard 6ES7960-1AA06-0XA0 sync module in any S7-400 rack. The 13 mm width, backplane connector, and synchronization protocol are identical.

MPN
6AG1960-1AA06-7XA0
