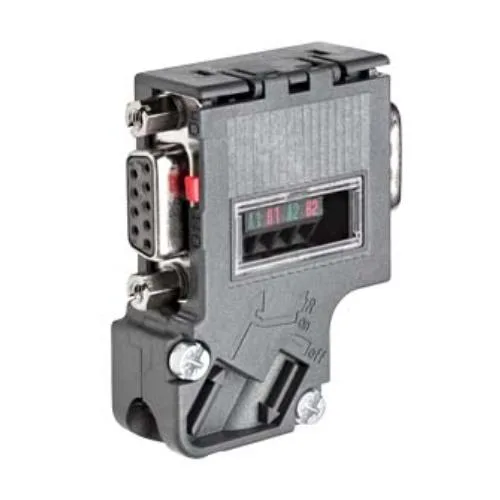

The 6AG1972-0BB42-7XA0 is a SIPLUS PROFIBUS bus connector with a 35-degree angled cable outlet, screw termination for PROFIBUS cables, and an integrated PG programming socket. It connects PROFIBUS stations to the bus cable and supports transfer rates from 9.6 kbit/s up to 12 Mbit/s. The connector includes a built-in terminating resistor that is switched on or off via a slide switch, eliminating the need for a separate terminator at the end of the segment.
Rated for operation, storage, and transport from -40 to +70 °C with 100 % humidity including condensation and frost (though commissioning in a bedewed state is not permitted). The enclosure is plastic, rated IP20, and the part is silicon-free. Holds UL approval and RoHS conformity. The lifecycle status is active — this is a current-production part.
Compact footprint: 39.5 mm deep, 15.8 mm wide, 54 mm high. The 35° cable outlet keeps the cable routed low against the panel, saving vertical clearance in crowded cabinets. The locking mechanism uses a screwed joint for a vibration-resistant connection.
