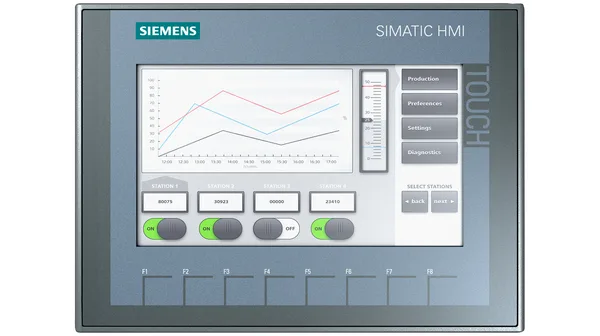

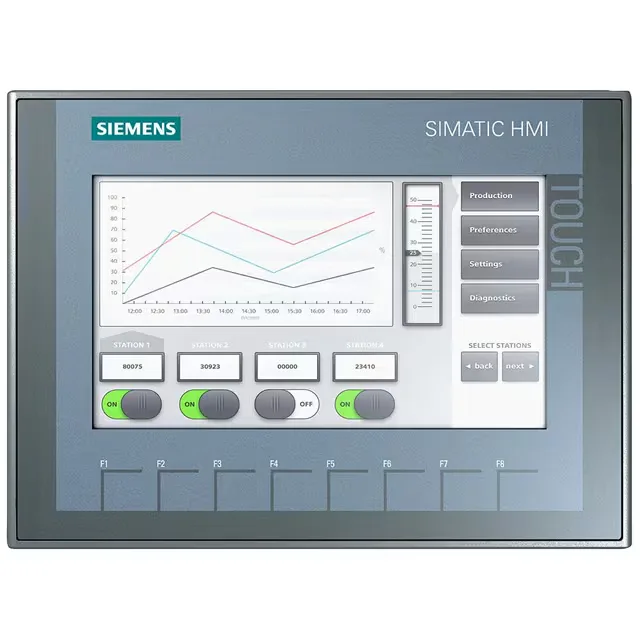

Siemens 6AV2123-2GB03-0AX0
MPN6AV2123-2GB03-0AX0
Active
SIMATIC HMI, KTP700 Basic, Basic Panel, Key/touch operation, 7" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
$483.87 – $990.29Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 7 in |
| Display design | TFT widescreen display, LED backlighting |
| Touch screen | Yes; Analog-resistive |
| Number of display colors | 65 536 |
| Backlight MTBF (at 25 °C) | 20 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 230 mA |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 141 mm |
| Mounting cutout width | 197 mm |
| Portrait mounting possible | Yes |
| Overall depth | 39 mm |
| Front panel height | 158 mm |
| Front panel width | 214 mm |
| Weight (without packaging) | 780 g |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 %; no condensation |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | No |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
MPN
6AV2123-2GB03-0AX0
