Siemens 6AV2124-0MC24-0AX0 — HMI Operator Interfaces

Siemens 6AV2124-0MC24-0AX0

MPN6AV2124-0MC24-0AX0
Active

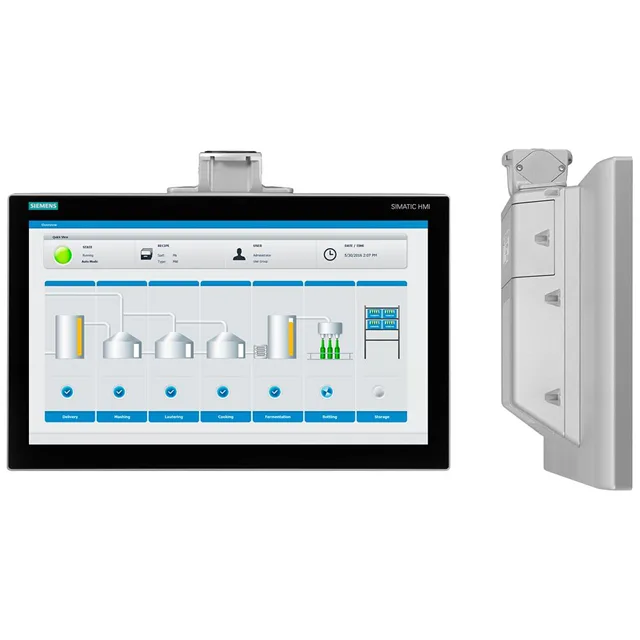

SIMATIC HMI TP1200 Comfort Pro for support arm (not expandable, flange on top), Comfort Panel, touch operation, 12" Widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, WEC 2013, configurable from WinCC Comfort V14 SP1 with HSP

$2,015.49 – $4,699.29Ref. price · indicative, final on quote
Siemens 6AV2124-0MC24-0AX0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6AV2124-0MC24-0AX0 — Display
ParameterValue
Screen diagonal (size)12.1 in
Display designTFT
Touch screenYes; Projective-capacitive
Number of display colors16 777 216
Backlight MTBF (at 25 °C)80 000 h
6AV2124-0MC24-0AX0 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes; Onscreen keyboard
6AV2124-0MC24-0AX0 — Electrical
ParameterValue
Current consumption (rated)1.5 A
Rated value (DC)24 V
Type of supply voltageDC
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
6AV2124-0MC24-0AX0 — Mechanical
ParameterValue
Portrait mounting possibleNo
Overall depth101 mm; Without basic adapter
Front panel height226 mm; Without basic adapter
Front panel width313 mm
Weight (without packaging)4.9 kg
6AV2124-0MC24-0AX0 — Environmental
ParameterValue
Ingress protection, frontIP65
Ingress protection, rearIP65
Max.60 °C
Min.-20 °C
Relative humidity, operation, max.90 %; no condensation
6AV2124-0MC24-0AX0 — Approvals
ParameterValue
CE markYes
cULus listedYes
RCM (formerly C-TICK)Yes
MPN
6AV2124-0MC24-0AX0
