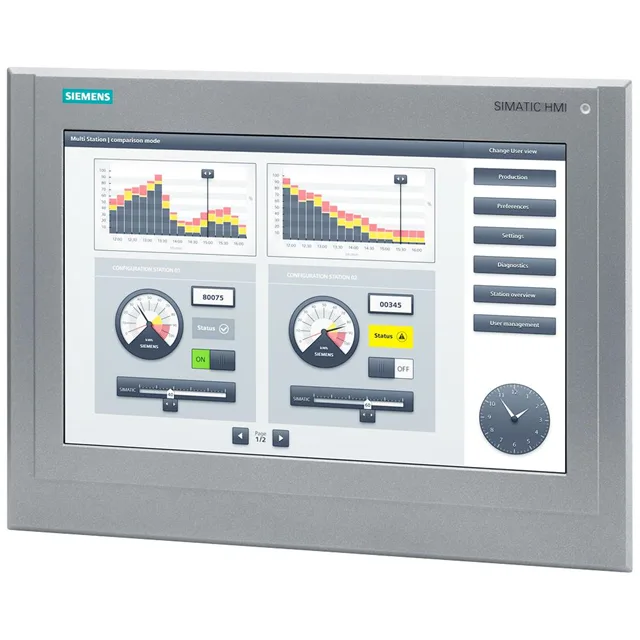

Siemens 6AV2124-0QC13-0AX0 — HMI Operator Interfaces

Siemens 6AV2124-0QC13-0AX0

MPN6AV2124-0QC13-0AX0
Active

SIMATIC HMI TP1500 Comfort Outdoor, Comfort Panel, Touch operation, 15" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V13 SP1, HSP

$3,291.84 – $7,676.32Ref. price · indicative, final on quote
Siemens 6AV2124-0QC13-0AX0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6AV2124-0QC13-0AX0 — Display
ParameterValue
Screen diagonal (size)15.4 in
Display designTFT, bonded, daylight-readable
Touch screenYes; Analog-resistive
Number of display colors16 777 216
Backlight MTBF (at 25 °C)50 000 h
6AV2124-0QC13-0AX0 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes; Onscreen keyboard
6AV2124-0QC13-0AX0 — Electrical
ParameterValue
Current consumption (rated)1.3 A
Rated value (DC)24 V
Type of supply voltageDC
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
6AV2124-0QC13-0AX0 — Mechanical
ParameterValue
Mounting cutout height291 mm
Mounting cutout width396 mm
Portrait mounting possibleYes
Overall depth77 mm
Front panel height310 mm
Front panel width415 mm
Weight (without packaging)4 kg
6AV2124-0QC13-0AX0 — Environmental
ParameterValue
Ingress protection, frontIP66
Ingress protection, rearIP20
Max.70 °C
Min.-30 °C
Relative humidity, operation, max.90 %; no condensation
6AV2124-0QC13-0AX0 — Approvals
ParameterValue
CE markYes
cULus listedYes
RCM (formerly C-TICK)Yes
ATEX Zone 2Yes; For inscription on device rating plate
Marine approval: ABSYes
Marine approval: GLYes
Marine approval: DNVYes
Marine approval: LRSYes
Marine approval: BVYes; Available soon
MPN
6AV2124-0QC13-0AX0
