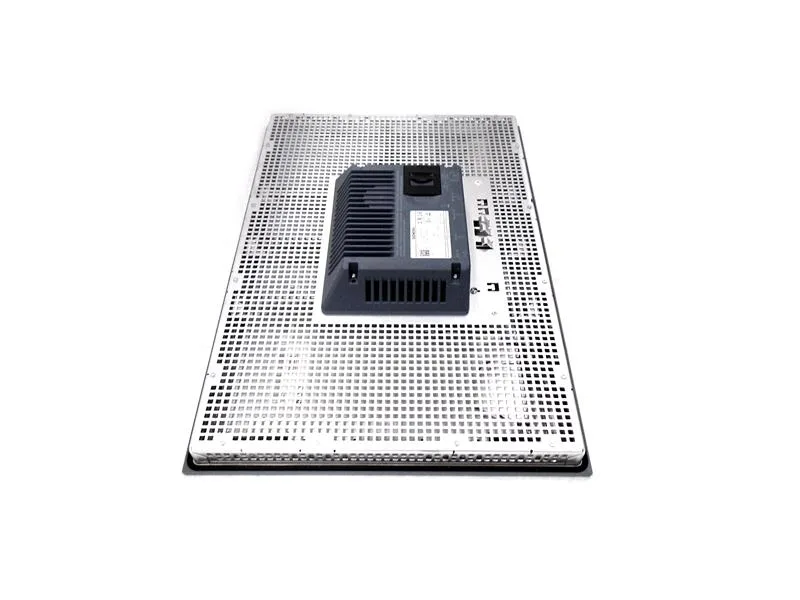

Siemens SIMATIC 6AV2124-0XC02-0AX1 HMI, 2 Ethernet ports, IP20, -20 to 60 °C, 475.2 x 267.3 x 75 mm, 3.63 kg, active production.
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 21.5 in |
| Display design | TFT |
| Touch screen | Yes; Analog-resistive |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 30 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; Onscreen keyboard |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 1.7 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 362 mm |
| Mounting cutout width | 542 mm |
| Portrait mounting possible | Yes |
| Overall depth | 75 mm |
| Front panel height | 380 mm |
| Front panel width | 560 mm |
| Weight (without packaging) | 6.7 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 %; no condensation |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | Yes |
| Marine approval: ABS | No |
| Marine approval: GL | No |
| Marine approval: DNV | No |
| Marine approval: LRS | No |
| Marine approval: BV | No |
The 6AV2124-0XC02-0AX1 is a Siemens SIMATIC HMI with two Ethernet ports, IP20 enclosure, and an operating range of -20 to 60 °C. It supports Css, Rdb, Txt, and Xml protocols but does not include CAN (Can = No).
This unit is in active production; lead time is confirmed via RFQ for the exact build code.
