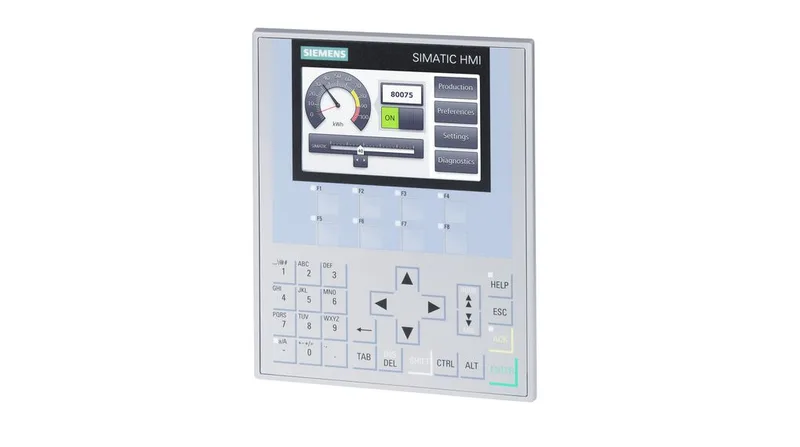

Siemens 6AV2124-1DC01-0AX0
MPN6AV2124-1DC01-0AX0
Active
SIMATIC HMI KP400 Comfort, Comfort Panel, key operation, 4" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
$511.81 – $1,193.27Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Screen diagonal (size) | 4.3 in |
| Display design | TFT |
| Touch screen | No; without |
| Number of display colors | 16 777 216 |
| Backlight MTBF (at 25 °C) | 80 000 h |
| Parameter | Value |
|---|---|
| Alphanumeric keyboard | Yes; similar to mobile phone |
| Parameter | Value |
|---|---|
| Current consumption (rated) | 0.13 A |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Mounting cutout height | 171 mm |
| Mounting cutout width | 135 mm |
| Portrait mounting possible | No |
| Overall depth | 49 mm |
| Front panel height | 188 mm |
| Front panel width | 152 mm |
| Weight (without packaging) | 0.8 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Ingress protection, rear | IP20 |
| Max. | 60 °C |
| Min. | -20 °C |
| Relative humidity, operation, max. | 90 %; no condensation |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | Yes |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | Yes |
