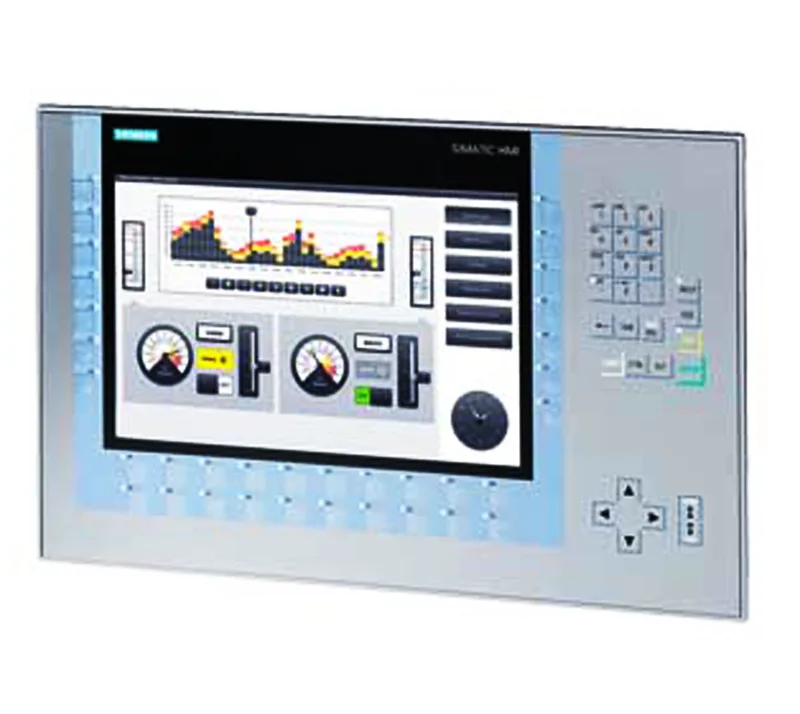

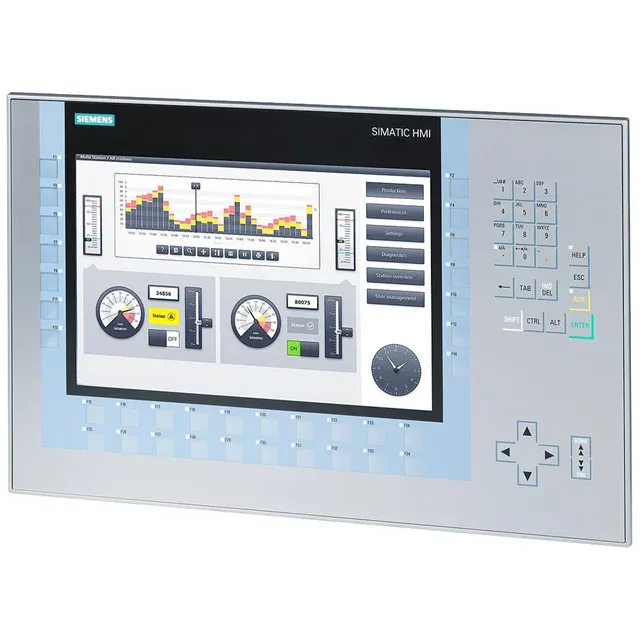

Siemens 6AV2124-1MC01-0AX0 — HMI Operator Interfaces

Siemens 6AV2124-1MC01-0AX0

MPN6AV2124-1MC01-0AX0
Active

SIMATIC HMI KP1200 Comfort, Comfort Panel, key operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11

$1,250.00Ref. price · indicative, final on quote
Siemens 6AV2124-1MC01-0AX0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026

Specifications

6AV2124-1MC01-0AX0 — Display
ParameterValue
Screen diagonal (size)12.1 in
Display designTFT
Touch screenNo; without
Number of display colors16 777 216
Backlight MTBF (at 25 °C)80 000 h
6AV2124-1MC01-0AX0 — Communication & I/O
ParameterValue
Alphanumeric keyboardYes; similar to mobile phone
6AV2124-1MC01-0AX0 — Electrical
ParameterValue
Current consumption (rated)0.85 A
Rated value (DC)24 V
Type of supply voltageDC
Permissible range, upper limit (DC)28.8 V
Permissible range, lower limit (DC)19.2 V
6AV2124-1MC01-0AX0 — Mechanical
ParameterValue
Mounting cutout height269 mm
Mounting cutout width434 mm
Portrait mounting possibleNo
Overall depth65 mm
Front panel height289 mm
Front panel width454 mm
Weight (without packaging)4.4 kg
6AV2124-1MC01-0AX0 — Environmental
ParameterValue
Ingress protection, frontIP65
Ingress protection, rearIP20
Max.60 °C
Min.-20 °C
Relative humidity, operation, max.90 %; no condensation
6AV2124-1MC01-0AX0 — Approvals
ParameterValue
CE markYes
cULus listedYes
RCM (formerly C-TICK)Yes
ATEX Zone 2Yes
Marine approval: ABSYes; As of product version: 10
Marine approval: GLYes; As of product version: 10
Marine approval: DNVYes; As of product version: 10
Marine approval: LRSYes; As of product version: 10
Marine approval: BVYes; As of product version: 10
MPN
6AV2124-1MC01-0AX0
