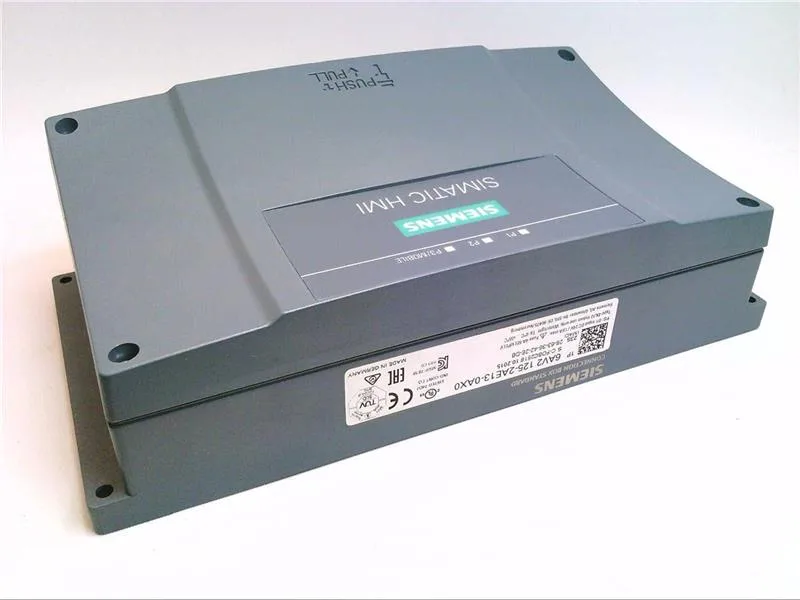

Siemens 6AV2125-2AE13-0AX0
MPN6AV2125-2AE13-0AX0
Active
SIMATIC HMI connection box Standard for Mobile Panels, wall mounting, PROFINET and PROFIsafe, connection of safety relay, terminal detection, integrated switch
$228.60 – $456.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Current consumption (rated) | 96 mA |
| Rated value (DC) | 24 V |
| Type of supply voltage | DC |
| Permissible range, upper limit (DC) | 28.8 V |
| Permissible range, lower limit (DC) | 19.2 V |
| Parameter | Value |
|---|---|
| Front panel height | 145 mm |
| Front panel width | 230 mm |
| Weight (without packaging) | 0.72 kg |
| Parameter | Value |
|---|---|
| Ingress protection, front | IP65 |
| Max. | 55 °C |
| Min. | 0 °C |
| Relative humidity, operation, max. | 90 % |
| Parameter | Value |
|---|---|
| CE mark | Yes |
| cULus listed | Yes |
| RCM (formerly C-TICK) | Yes |
| ATEX Zone 2 | No |
| Marine approval: ABS | Yes |
| Marine approval: GL | Yes |
| Marine approval: DNV | Yes |
| Marine approval: LRS | Yes |
| Marine approval: BV | No; Available soon |
MPN
6AV2125-2AE13-0AX0
